Modular partition CLOISON V70

with glass panelaluminumglass

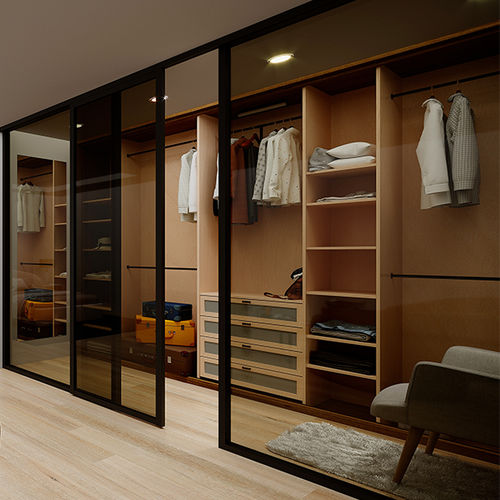

The SEED V70 glazed partition is a modular aluminium system engineered to structure interior spaces with controlled transparency and flexible configurations. It accepts glass or decorative infill panels (6–8 mm) and is available in full-height, half-wall, door-integrated and corner configurations.

Key features

• Aluminium profiles composed of two interlocking components; square 90° cuts and bracket-based assembly.
• Compatible infill: 6 mm to 8 mm glass or decorative panels.
• Clip-on glazing beads and discreet spacers ensure precise positioning and fast assembly.
• Options for hinged doors and door openings, including configurations with cross profiles and integrated hinged doors.
• Dual-colour interior/exterior finish option enabled by the clip-on profile concept.

Customisation

• Infill options: 6 / 8 mm glass or decorative panels.
• Modular flat adhesive profile widths: 25 mm, 30 mm and 40 mm for flexible layout configurations.
• Profile finish options: SEED colour collection finishes available.

Technical specifications / characteristics

• Easy on-site fabrication and assembly: straight cuts, clip-on glazing beads, bracket-based assembly with brackets positioned inside profiles and tightened with fixing screws.
• Acoustic performance: sound reduction index RA, tr up to 36 dB.
• Profiles with optimised wall thickness for structural performance and cost-effectiveness.
• Dual-colour design (interior/exterior) enabled by the clip-on concept.
• Typical configurations: full-height glazed single partition; full-height with cross profiles; full-height with door opening and cross profiles; full-height corner partition; sloped-ceiling solutions.
• Dimensions (standard ranges): leaf width 400 mm to 10 000 mm; leaf height 400 mm to 2 700 mm.
