Minimalist design fixed balustrade PERSPECTEEV

glassaluminumfor public space

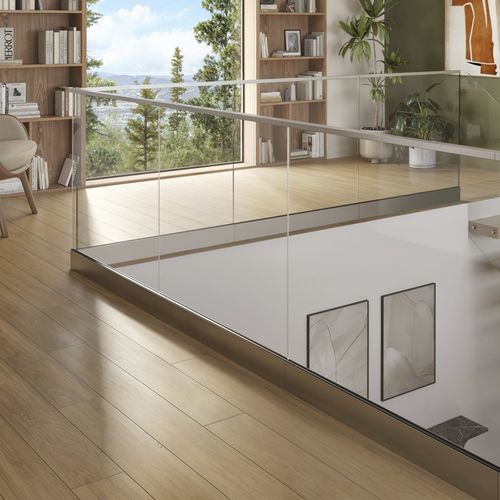

Perspecteev is a glass railing system for residential, office and public applications, offering clean lines and straightforward installation.

Overview

• Use cases: residential buildings, offices and public spaces.
• Design intent: minimalist glass balustrade providing visual transparency and architectural integration.
• Composition: system based on three aluminium profiles with a wedge/spacer system to secure laminated glass infill.

Installation methods

• English style (inboard/glass clamped to the inner face).
• French style (glass clamped to the outer face).

Customization & options

• Profile finishes: silver anodized or a broad range of colours from the SEED colour collection.
• Optional accessories: handrail profile available.
• LED integration possible for indirect lighting.

Documentation & tools

• Product documentation and technical data sheets available in PDF (see documents).
• Project configurator available to size and specify system components for each project.

Technical specifications

• Glass compatibility: laminated tempered glass HST88.4 or HST1010.4.
• Maximum recommended panel width: 1200 mm.
• Glass thickness: laminated tempered configurations 88.4 or 1010.4.
• Height: to be defined according to applicable local railing regulations and project requirements.
• Composition detail: three aluminium profiles with wedge/spacer clamping system.
• Options summary: profile finishes (silver anodized or SEED colours), LED integration, handrail profile.
