Fixed partition KITV30
with glass panelaluminumglass

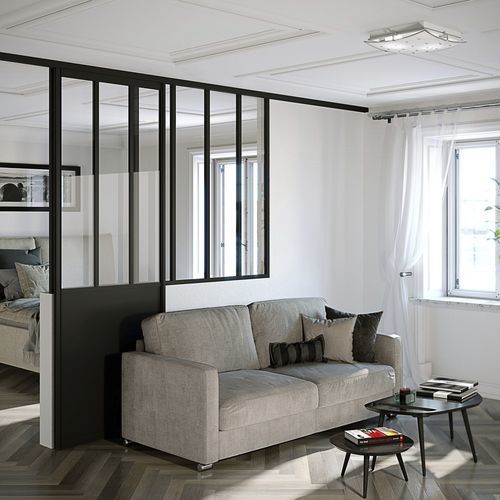

Fixed partition - KITV30 - SEED - with glass panel / aluminum / glass
Fixed partition - KITV30 - SEED - with glass panel / aluminum / glass
Fixed partition - KITV30 - SEED - with glass panel / aluminum / glass - image - 2
Fixed partition - KITV30 - SEED - with glass panel / aluminum / glass - image - 3
Fixed partition - KITV30 - SEED - with glass panel / aluminum / glass - image - 4
Fixed partition - KITV30 - SEED - with glass panel / aluminum / glass - image - 5
Fixed partition - KITV30 - SEED - with glass panel / aluminum / glass - image - 6
Fixed partition - KITV30 - SEED - with glass panel / aluminum / glass - image - 7
Fixed partition - KITV30 - SEED - with glass panel / aluminum / glass - image - 8
Add to favorites
Compare this product

Characteristics

Type
with glass panel, fixed
Material
glass, aluminum
Market
commercial, for commercial buildings
Applications
for interior
Shape
straight
Appearance
transparent
Other characteristics
custom
Height

81 cm, 120 cm, 159 cm, 198 cm
(32 in, 47 in, 63 in, 78 in)

Description

Overview

Ready-to-assemble solutions to create indoor glass partitions mounted on a base/half wall. Each kit includes pre-sized aluminium frame profiles, glazing beads, cross profiles, gaskets and fixing accessories to simplify on-site assembly of on-sill glass partitions.

Kits and contents
  • KITV30 — V30 810 mm
    • 2 frame profiles (1250 mm)
    • 2 glazing bead frame profiles (1250 mm)
    • 2 frame profiles (750 mm)
    • 2 glazing bead frame profiles (750 mm)
    • 1 glazing bead cross profile (1190 mm)
    • 1 cross profile (1190 mm)
    • 1 bubble gasket (7 m)
    • 1 flat gasket (7 m)
    • 8 brackets
    • 20 clips
    • 6 wedges (20×5 mm)
    • 1 Allen key
  • KITV30 — V30 1200 mm
    • 2 frame profiles (1250 mm)
    • 2 glazing bead frame profiles (1250 mm)
    • 2 frame profiles (1140 mm)
    • 2 glazing bead frame profiles (1140 mm)
    • 2 glazing bead cross profiles (1190 mm)
    • 2 cross profiles (1190 mm)
    • 1 bubble gasket (10 m)
    • 1 flat gasket (10 m)
    • 12 brackets
    • 30 clips
    • 8 wedges (20×5 mm)
    • 1 Allen key
  • KITV30 — V30 1590 mm
    • 2 frame profiles (1250 mm)
    • 2 glazing bead frame profiles (1250 mm)
    • 2 frame profiles (1530 mm)
    • 2 glazing bead frame profiles (1530 mm)
    • 3 glazing bead cross profiles (1190 mm)
    • 3 cross profiles (1190 mm)
    • 1 bubble gasket (13 m)
    • 1 flat gasket (13 m)
    • 16 brackets
    • 40 clips
    • 10 wedges (20×5 mm)
    • 1 Allen key
  • KITV30 — V30 1980 mm
    • 2 frame profiles (1250 mm)
    • 2 glazing bead frame profiles (1250 mm)
    • 2 frame profiles (1920 mm)
    • 2 glazing bead frame profiles (1920 mm)
    • 4 glazing bead cross profiles (1190 mm)
    • 4 cross profiles (1190 mm)
    • 1 bubble gasket (17 m)
    • 1 flat gasket (17 m)
    • 20 angle brackets
    • 45 clips
    • 12 wedges (20×5 mm)
    • 1 Allen key


Finishes and options

  • Standard finishes: White 9003 Textured and Black 9005 Textured (product codes shown per kit variant on the site, e.g. KITV30LBLG810, KITV30LNOG810).
  • Option: Multi-RAL colour finishes available on request.


Notes

  • Other configurations and custom widths are available on request.


Technical characteristics / specifications

  • Brand: SEED Gammiste
  • Series / commercial designation: KITV30
  • Available nominal heights: 810 mm, 1200 mm, 1590 mm, 1980 mm (V30 variants)
  • Main kit contents: aluminium frame profiles, glazing beads and cross profiles, bubble and flat gaskets, brackets, clips, wedges and Allen key (contents vary by kit size)
  • Finishes: White 9003 Textured, Black 9005 Textured; Multi-RAL option
  • Purpose: ready-to-assemble indoor glass partition kits for installation on a base/half wall
  • Delivery: kits supplied complete with fixings and gaskets sized to the specified kit dimensions
