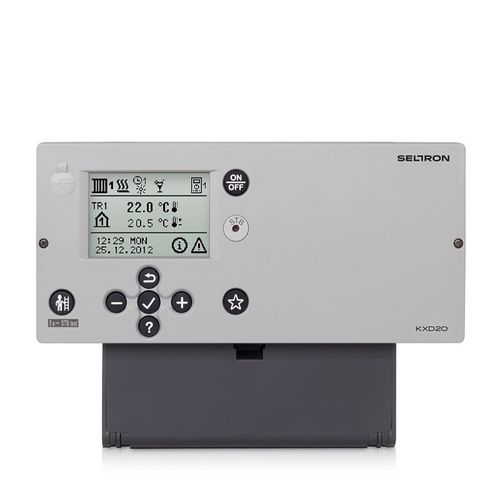

KXD controllers are the new generation of powerful furnace and weather compensated controllers, which also provide the regulation of the room heating and hot water production in addition to the regulation of liquid fuel furnaces. They are used with liquid fuel furnaces. They allow for the regulation of one or two heating circuits, switching between heating sources, and the protection of the return line during the charging of the supply device. They are used with liquid fuel furnaces.
Regulating liquid fuel boilers
Regulating radiator space heating system
Regulating floor heating or cooling system
Regulating convector heating or cooling system
Regulating wall or ceiling heating or cooling system
Hot water preparation
it regulates the boiler and space heating;
it features all the safety functions for boiler protection;
it can be mounted on the wall, in the boiler housing or with the help of a console to the boiler coat;
52 preset hydraulic circuit diagrams;
space heating or cooling according to the time program;
hot water heating according to the time program;
solar hot water heating;
regulating heating systems with a hot water buffer tank;
the possibility of connecting 2 room units;
BOOST function for space heating;
built-in solar heating system protection features;
14 language user interfaces;
startup wizard for an easy and quick device startup;
operational diagnostics featuring error and excessive temperature warnings;
remote control with the help of SeltronHome system.
Backlit graphic display - yes
Operating hours meter - yes
Weekly program timer - yes
Integrated STB thermal protection - yes
Connection voltage - 230 V~, 50 Hz
