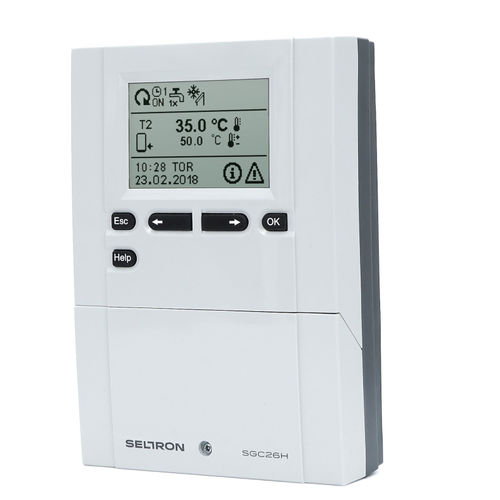

Wall-mounted heating controller SGC26H
for solar water heatersremote-controlled

wall-mounted heating controller
wall-mounted heating controller
wall-mounted heating controller
wall-mounted heating controller
wall-mounted heating controller
wall-mounted heating controller
wall-mounted heating controller
Add to favorites
Compare this product


Characteristics

Installation
wall-mounted
Other characteristics
remote-controlled, for solar water heaters

Description

SGC universal solar heating controllers are intended for the regulation of solar systems for hot water production as well as a support system for room heating. Advanced operation algorithms ensure an optimal usage of solar energy and allow for the regulation of energy efficient circulation pumps. The SGC controllers have integrated preset hydraulic systems that allow a fast and simple installation. In hot water production systems with classic or vacuum collectors In hot water production systems with additional heat sources In supply device heating using solar heating system and additional heat sources In pool heating systems 22 preset hydraulic diagrams, 1 free programmable output, rotation speed control of 1 classical pump (RMP), rotation speed control of 1 energy-efficient pump (PWM, 0–10 V), system regulation with 2 collector fields, system regulation with 2 heat storage tanks, startup wizard for an easy and quick startup of the device, measurement and display of the generated energy, solar system protection by overheating of collectors, diagnostics of operation by prompting to errors and exceeded temperatures, the SeltronHome platform connectivity allowing remote control via smartphone or tablet. Weekly program timer - Connection voltage - 230 V~, 50 Hz Own consumption - 2.5 W Energy consumption in the standby mode - Max. 0.5 W No. of inputs - 6 pcs temperature sensor (Pt 1000) 1 pc pulse input Additional inputs - — No. of outputs - 1 pc Triac for speed control (R2) 1 pc PWM or analogue 0÷10 V (Y2) Relay outputs - 4 (1) A~, 230 V~ Triac outputs - 1 (1) A~, 230 V~ Clock power supply - Battery CR2032 (Li-Mn) 3 V Clock accuracy - +/-1 s (24 h) at 20 °C Degree of protection - IP20/EN60529
