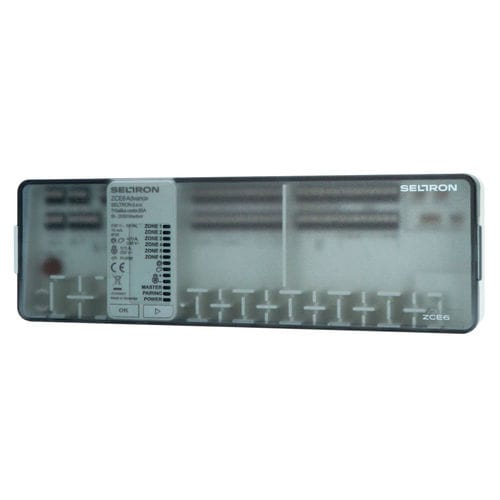

ZCE6 controllers are intended for regulation zonal heating and/or cooling. The regulation is carried out using thermal drives on the distributor valves based on the temperatures obtained from room units. There are six independent temperature zones with the possibility of regulating fourteen heating-cooling units in total.
Regulating floor heating or cooling system
Regulating wall or ceiling heating or cooling system
Regulating convector heating or cooling system
Regulation of 6 independent temperature zones.
Possibility of selecting voltage for thermal actuators: for 24V ~ or 230V ~.
By connecting an antenna, wired or wireless room units or combinations of both can be connected to the controller.
Setting basic operation by choosing the circuit diagram.
Inaudible control of thermal actuators with electronic relays.
Possibility of joining temperature zones into one and unique zone.
Option of BUS connection of multiple controllers.
Weekly program timer - yes
Connection voltage - 230 V~, 50 Hz
Own consumption - 5 W
Energy consumption in the standby mode - Max. 0.5 W
No. of inputs - 3 pcs temperature sensor (Pt 1000)
3 digital inputs
No. of outputs - 6 pcs solid state relay for zone control
Relay outputs - 4 (1) A~, 230 V~
Triac output - 1 (1) A~, 230 V~
Clock power supply - Battery R1025 (Li-Mn) 3 V
Clock accuracy - +/-1 s (24 h) at 20 °C
Degree of protection - IP20 according to EN 60529
Safety class - I according to EN 60730-1
Operation mode - 1B according to EN 60730-1
Type of temperature sensors - Pt1000
Operation mode - PI controller
Housing material - PC+ABS – thermoplastic
Permissible ambient temperature - 5÷40 °C
Storage temperature - -20÷65 °C
Product weight - 360 g
