Sanitary macerator Sanigrind Pro

professionalhome

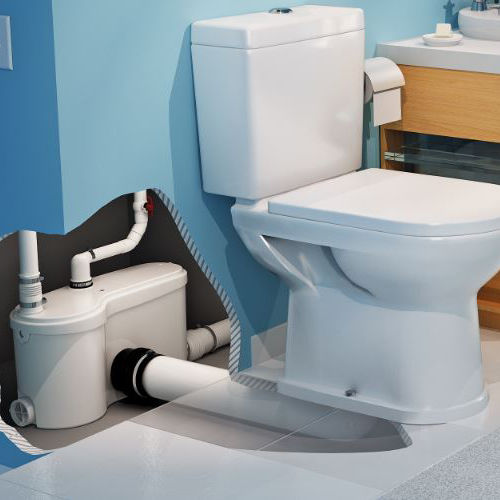

The Sanigrind Pro is a solution for any conventional toilet Suitable for a toilet, a sink, a shower/bathtub and a washing machine (indirect connection via laundry sink) Vertical pumping up to 25ft and/or 150ft horizontally Grinder system ideal for uncontrolled environments Easy access service panel The Sanigrind Pro is a 1 HP pump system used to install a complete bathroom up to 25 feet below the sewer line, or even up to 150 feet away from a soil stack. It incorporates a grinder system which is ideal for uncontrolled environments in both residential and commercial applications (ie. rental unit, offices, warehouses, etc). The Sanigrind Pro is designed to handle sanitary products that may have been flushed down the toilet; such may consist of condoms, sanitary napkins, q-tips, dental floss, etc. Note: In commercial installations, plumbing codes require an elongated bowl (ADA) to be installed with this system. The inside of the Sanigrind Pro comprises of a pressure chamber, which starts and stops the unit, and the motor, which drives the stainless steel cutting blade and the pump. When the flush is activated, the water flowing into the Sanigrind Pro activates a micro switch in the pressure chamber, which in turn starts the motor. The motor is sealed for life in an oil filled enclosure. A common spindle/shaft drives the impeller and the blades. The moving parts therefore are kept to an absolute minimum. Water and organic waste matter, enter the chamber and are reduced to slurry as the blades rotate at 3600 RPM. The reduced solids are picked up at the bottom and the impeller mounted beneath the motor ejects the waste.
