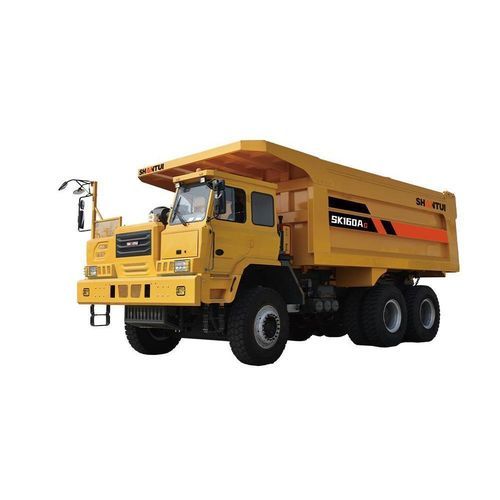

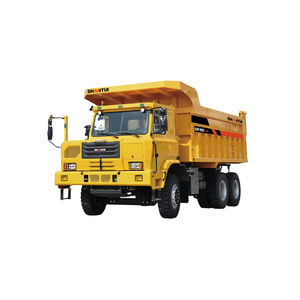

Rubber-tired dump truck SK160A-G

dieselfor constructionloading

Overview
The SK160A-G mining truck offers a rated payload of 100 tonnes with a proven structural design, high-power output and optimized fuel efficiency. It features an ultra-wide riveted frame and premium suspension for stable operation under heavy loads, and a large-capacity dump body suited to large-scale mining operations.

Model
SK160A-G

Parameters

• Machine weight (kg): 160000
• Load capacity (kg): 100000
• Engine power / speed (kW/rpm): 566 / 1900
• External dimensions (mm): 10750 × 4360 × 4490
• Axle load (t): 35 / 60 / 60
• Transmission: Allison 6620OWBD_PR
• Fuel tank capacity (L): 900
• Tire: 505/95R29 ★★★
• Drive axle: Central hub planetary two-stage reduction with inter-axle differential lock
• Emissions: Non-road China Stage III, Domestic Stage IV

Application Cases

• Shantui mining truck deployed in Latin America
• Shantui mining truck project in Uzbekistan
• Shantui SK135-G mining truck operation in Vietnam

Technical specifications

• Machine weight: 160000 kg
• Rated load capacity: 100000 kg
• Engine: 566 kW @ 1900 rpm
• Dimensions: 10750 × 4360 × 4490 mm
• Axle loads: 35 / 60 / 60 t
• Transmission model: Allison 6620OWBD_PR
• Fuel tank: 900 L
• Tire spec: 505/95R29 ★★★
• Drive axle: central hub planetary two-stage reduction with inter-axle differential lock
• Emissions standard: Non-road China Stage III; Domestic Stage IV
