Tracked loader DL300-C3

for constructiondieselunderground

Product

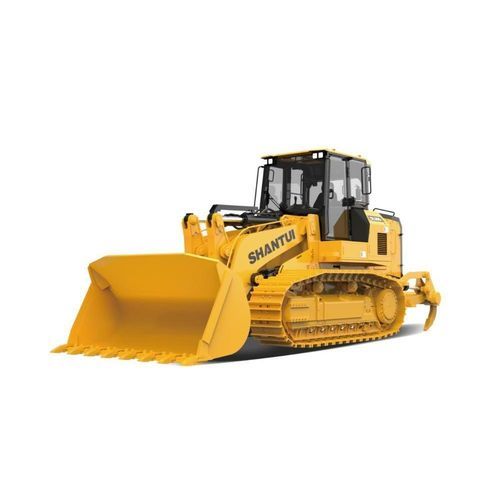

Track Loader DL300-C3

Configuration selling point
Customized Weichai engine combined with Linde hydraulic components from affiliated group enterprises form an energy-efficient core powertrain. A Shantui-specific high-strength chassis with four wheels and one track improves component life. Integrated controls provide automatic lift and bucket retract functions for precise operation.

Ease of maintenance and operation comfort
Centralized filter layout enables straightforward maintenance. The spacious, well-sealed cab offers wide visibility. An intelligent diagnostic system monitors key parameters in real time to support uptime.

Adaptability to diverse working conditions
Equipped for pushing, loading, shoveling and transportation, the machine is suitable for confined urban underground spaces, wetlands, mines, steel plants, ship compartments, forests, tunnels and similar complex working environments.

Application Cases

• Shantui Track Loader in earthmoving operations

Parameters
Parameter | DL300-C3
Engine power/speed(kW/rpm) | 228/1900
Operating mass(kg) | 29700
Bucket capacity(m³) | 3.2
Machine external dimensions(mm) | 7345x2980x3510
Engine | WEICHAI WP12
Track center distance(mm) | 2160
Track shoe width(mm) | 660/830
Ground contact length(mm) | 2945
Ripper type | Three-tooth
Ripper penetration depth(mm) | 397
Emissions (Indicated as per international standards) | EU stageⅢA

Specifications

• Engine power/speed: 228 kW / 1900 rpm
• Operating mass: 29,700 kg
• Bucket capacity: 3.2 m³
• Machine external dimensions (L×W×H): 7345 × 2980 × 3510 mm
• Engine model: WEICHAI WP12
• Track center distance: 2160 mm
• Track shoe width: 660 mm or 830 mm
• Ground contact length: 2945 mm
• Ripper type: Three-tooth
• Ripper penetration depth: 397 mm
• Emissions: EU stage IIIA
