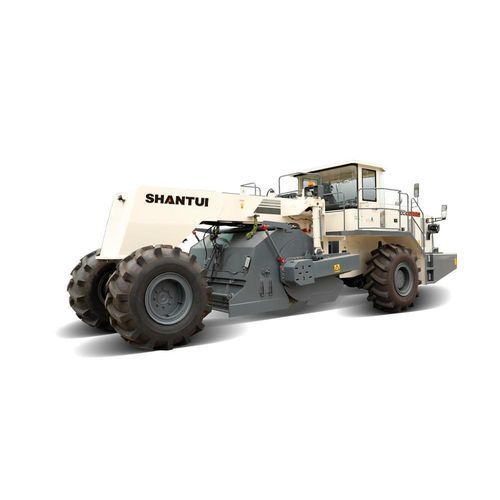

Self-propelled cold planer DGL530-C2
largefor asphalt

Self-propelled cold planer - DGL530-C2 - SHANDONG SHANTUI CONSTRUCTION MACHINERY IMP&EXP CO.,LTD - large / for asphalt
Self-propelled cold planer - DGL530-C2 - SHANDONG SHANTUI CONSTRUCTION MACHINERY IMP&EXP CO.,LTD - large / for asphalt
Self-propelled cold planer - DGL530-C2 - SHANDONG SHANTUI CONSTRUCTION MACHINERY IMP&EXP CO.,LTD - large / for asphalt - image - 2
Add to favorites
Compare this product

Characteristics

Type
self-propelled
Size
large
Applications
for asphalt

Description

Product
  • Cold recycling machine model DGL530-C2 for in-situ cold recycling of asphalt pavements and lime-ash base layers, and for stabilized soil mixing for base and subbase layers of rural and township roads.


Configuration highlights
  • Customized Weichai WP13 engine matched with a premium-brand hydraulic system to provide reliable power and efficient operation. Key milling and mixing components are self-developed and manufactured to ensure structural reliability and service life.


Ease of maintenance and operator comfort
  • Equipped with a 10-inch LCD for operation monitoring. Maintenance points (filters, service access) are logically arranged and reachable by opening the engine hood. Ground refueling simplifies fuel service procedures.


Adaptability to working conditions
  • Suitable for in-situ cold recycling of general asphalt pavement and lime-ash base layers, and for stabilized soil mixing for base and subbase layers in rural and township road construction.


Application case
  • Example: SHANTUI DGL530 hydraulic cold recycler employed in cold recycling projects.


Parameters (excerpt from product page)
  • Model: DGL530-C2
  • Engine model: WP13G530
  • Engine power (KW): 390
  • Milling and mixing width (mm): 2300
  • Milling and mixing depth (mm): 400
  • Operating weight (Kg): 23600
  • External dimensions (L × W × H) mm: 9246 × 3110 × 3490
  • Working speed (m/min): 0 ~ 60
  • Travel speed (m/min): 0 ~ 26
  • Wheelbase (mm): 5365
  • Track width (mm): Front: 2350 Rear: 2350
  • Emissions (marked in accordance with international standards): China-III


Technical specifications
  • Model: DGL530-C2
  • Engine model: WP13G530
  • Engine power: 390 kW
  • Milling and mixing width: 2300 mm
  • Milling and mixing depth: 400 mm
  • Operating weight: 23,600 Kg
  • External dimensions (L×W×H): 9246 × 3110 × 3490 mm
  • Working speed: 0–60 m/min
  • Travel speed: 0–26 m/min
  • Wheelbase: 5365 mm
  • Track width: Front 2350 mm, Rear 2350 mm
  • Emissions standard: China-III
