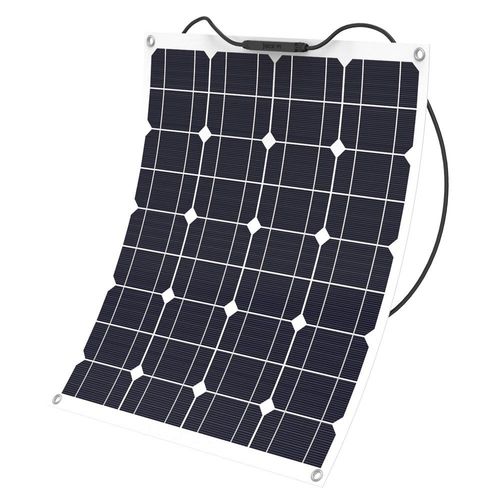

Monocrystalline PV solar panel eGo m50W

semi-rigid

Product Name - Light weight solar panel Maximum Power[Wp] - 50W Solar Cell - Monocrystalline solar cell Cell size[mm] - 156*48.3 Cell Array[Pcs] - 2*18 Cell Efficiency - 21.00% Size[mm] - 350*950*3 Max Power Voltage Vmp[V] - 19.80 Max Power Current Imp[A] - 2.53 Open Circuit Voltage Voc[V] - 23.36 Short Circuit Current Isc[A] - 1.73 Net.Weight[kg] - 2.4 Power tolerance[ - ±5% NOCT[ - 45±2 Operating Temperature[ - -40/+85 Temperature Coefficient Pmax[%/ - -0.43 Temperature Coefficient Voc[[%/ - -0.34 Temperature Coefficient Isc[[%/ - 0.05 Maximum System Voltage[V] - 200 V Maximum Reverse Current[V] - 10A Certification - CE ROHS Surface/Backsheet - PET/white plastic Maximum bend radius(θ) - 10°-20° Cables and Connectors - PV-XC502 Jbox IP65,0.9m cable and 1 pair of MC4 connector Standard Test Conditions - STC: 1000W/m², AM 1.5 and cell temp 25°C Other notes - round corner R10,with eyelets Package - 1pcs/Polyethylene foam(EPE Foam),then in 1 carton box
