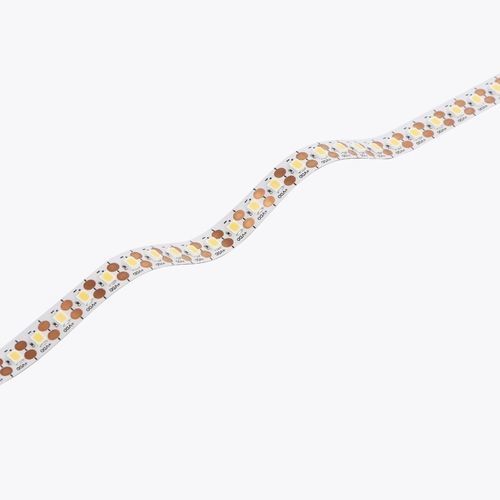

LED strip light MINI-CUT 7.1MMIP20plastic
Add to favorites
Compare this product
Characteristics
- Light source
- LED
- Protection class
- IP20
- Material
- plastic
Description
Mini-cut LED strip is strip with the smallest segment for cutting, which is used for those occasion where the accurate length are required strictly. The minimum cutting length of our strip can be ±2.5mm. And it's also available for 3V, 12V, 24V.
Power
-
14.4W/m
PCB width
-
8mm
Lumen output (4000K)
-
1740Lm/m CRI 80+
1400Lm/m CRI 90+
1290Lm/m CRI 95+
1220Lm/m CRI 98+
MAXRUN
- 5m
LEDs/m
-
2835 140LEDs/m
Cut Length
-
7.14mm (1LEDs)
CRI -
CRI 80+~98+
CCT/Color -
1800K~6500K
Voltage -
24VDC
Dimmable -
Yes (PWM, DALI, 0/1-10V, Triac)
Ambient temp.
-
-35°C ~ 50°C
Beam Angle
-
120°
Strip length/reel
-
0.5m~50m
Lifespan
-
50,000Hrs
