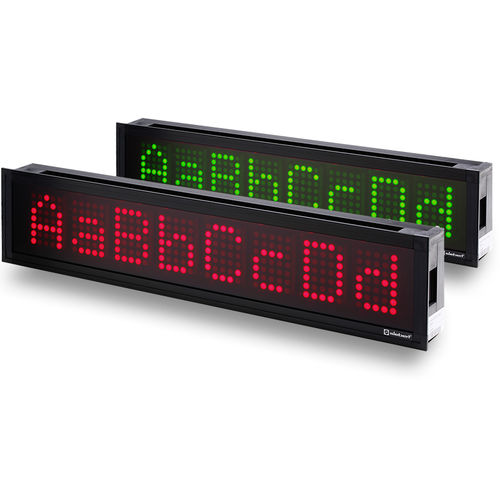

Wall-mounted display panel SX202

indoorLEDdigital

The digitals displays of the SX202 series are designed for installation in front panels or for switch panel mounting. With character heights of 30 or 50 mm for the alphanumeric versions they are also well readable from further distances. Menu-guided parameterization Operation modes, parameters and device functions are defined in the menu. The menu appears on the back of the unit in a separate display. There is no need of the main display to be visible during parameterization. Technical data Power supply 24 V DC ±15 %, reverse polarity protected, galvanically isolated Protection class IP65 front-sided Connecting technology Plug-in screw-type terminals, Profibus 9-pin sub-D socket
