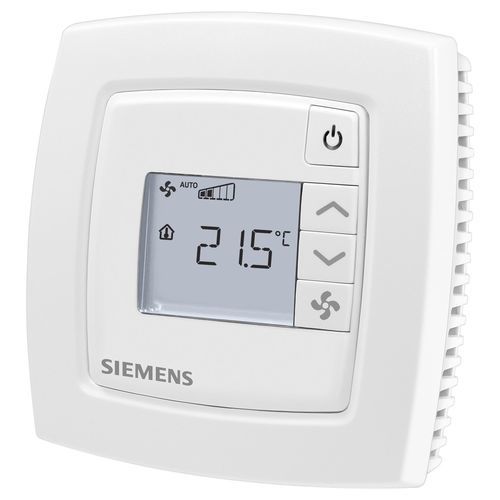

Digital thermostat RDB160BNU

analogmanualfor energy management

Operating voltage: AC 24 V Fan: 1, 2, 3-speed or DC 0...10 V* (automatic or manual) Operating voltage AC 24 V, 24 V Setpoint setting range 41…95 °F (5…35 °C) Measuring range 32…122 °F (0…50 °C) Power consumption 2.5 VA Connection cable 2.1 mm²; 0 m Digital output, switching voltage AC 24 V Digital output, switching current 0.5 A Communication BACnet MS/TP Analog inputs, number 2 Digital inputs, number 1 Digital outputs DO1, DO2, DO3: Fan 1-, 2-, 3-speed , DO4: Electric heater or cooling valve Universal outputs UO1: Heating or cooling valve UO2: Fan or cooling valve Universal outputs, number 2 Universal output, signal 2-position , DC 0...10 V Universal output, current Digital: max. 2.0 A, Analog: max. 5 mA Degree of protection IP20 Dimensions (W x H x D) 95 x 95 x 28 mm Color White
