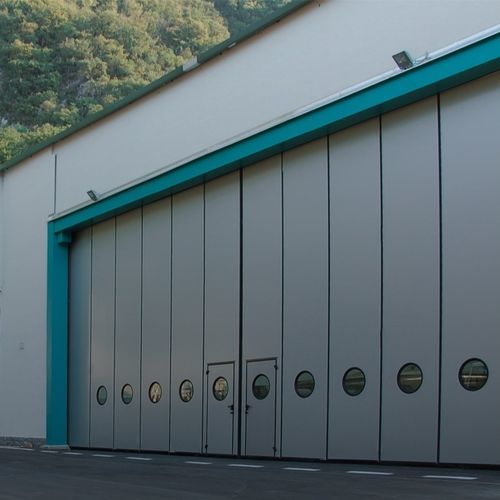

Sliding industrial door LE, LN, LG, SN, BT series

foldingsheet metalpolyurethane

The LE, LN, LG series folding doors and SN series sliding doors are characterised by a 55 mm thick sandwich panel, consisting of 0.5 mm thick internal/external sheet metal and CFC-free class B2 self-extinguishing polyurethane with a minimum density of 40 kg/m3. RAL colours embossed sheet metal: 9002, 6005, 9006 RAL colours smooth sheet metal: 9002, 6005, 9006, 7016, 5010, 3000, 8019 We offer a variety of door solutions in both sides or left/right. Inserted portholes and pedestrian doors and fully glazed panels are available. Products with class 3 or 4 wind resistance Durability 20,000 cycles. Maximum dimensions and main product specifications: LE Series – Folding door without ground track Maximum dimensions mm 4450x6150h LN Series – Folding door with ground track Maximum dimensions mm 12000x6300h LG Series – Folding door with bottom track on the floor Maximum dimensions mm 19800X6300h BT Series – Multipurpose 1- or 2-leaf doors Maximum dimensions mm 1500x3000h BC Series – 1 or 2 leaf door CERTIFIED UNI EN 14351-1:2006+A2:2016 Maximum dimensions mm 2800X2500h
