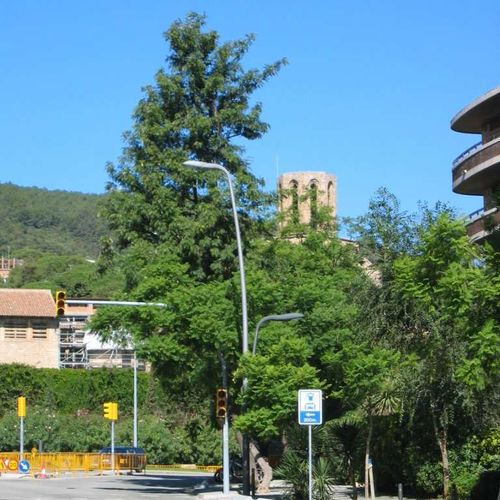

Pole, 10 m high, manufactured in two sections, with trim designed for SYRMA luminaire.
Materials
Base:
carbon steel plate.
Shaft:
carbon steel plate.
Flange plate:
flat steel base plate with reinforcing ring
and gussets.
Finish
Base and shaft:
hot dip galvanised and painted.
Construction
Composed of base and shaft.
Luminaire attachment
Lateral fixing: special coupling combined
with trim for SYRMA luminaire. (see page
173).
IP/IK
IP 3X.
To achieve IP44, use of an internal
junction box with IP44 is necessary
(not supplied with the pole).
IK10.
Notes
Supplied with fixing bolts and template.
Luminaires not included.
