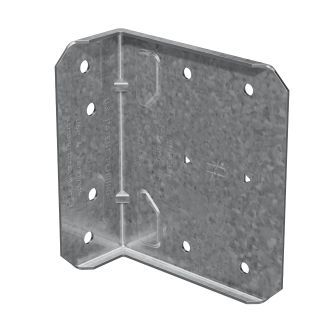

Metal structure connector FCB

stainless steel

The FCB clip is an economical, high-performance fixed-clip connector that can be used for a variety of framing applications. It is rated for tension, compression, shear and in-plane loads and offers the designer the flexibility of specifying different screw and anchorage patterns that conform to desired load levels. Key Features Rated for tension, compression, shear and in-plane loads Provides design flexibility with varying screw and anchorage patterns that achieve different load levels Strategically placed stiffeners, embossments and anchor holes maximize connector performance Material 54 mil (16 ga.) Finish Galvanized (G90) Installation Use the specified type and number of anchors.
