Retail use drawer SN 24×32 MINI

for shopcommercialplastic

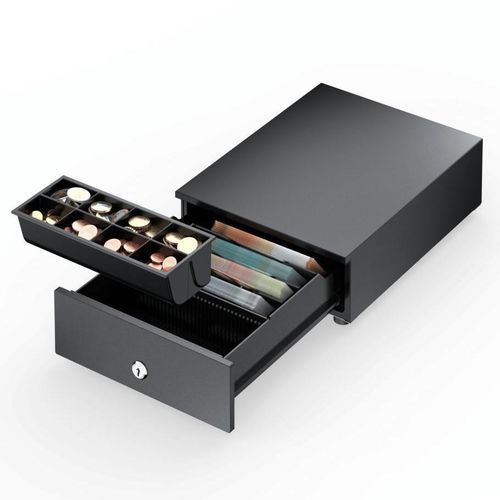

Overview Cash drawer by SN SYSTEMS designed for integration with POS and ECR systems. The SN 24×32 MINI is part of a modular product line offering multiple sizes, finish and interface options; the design features a metal case with an ABS removable tray and front sliding opening.

Product CASH DRAWER SN 24×32 MINI

Features

• Dimensions: 245 W × 320 D × 100 H (mm)
• Structure: Metal case with removable ABS plastic tray (tray thickness configurable from 0.8 mm to 2.00 mm)
• Color options: Black / White / Grey / RAL#
• Currency insert:
  • 4 banknote positions (horizontal)
  • 8 coin compartments
  • Removable coin case for cash handling
• Front opening: sliding with polyurethane heavy-duty ball bearing rollers
• Keylock: 3-position keylock; available as single-key or 25 different key combinations
• Weight: 3.5 kg
• Durability: tested to 1,000,000 cycles

Electrical & Interface

• Solenoid options: 6V, 9V, 12V, 24V (24V option available with micro-switch sensor)
• DC interface options: RJ11/12, RJ12 female, jack, Bluetooth, USB
• PIN wiring scheme: 1 - Case Ground; 2 - Solenoid; 3 - Microswitch; 4 - Solenoid; 5 - Microswitch; 6 - Signal Ground
• Cable length: standard 1.20 m (output top case), customizable on request

Certifications

• TÜV Mechanical Safe Test Report
• TÜV Drop Test
• TÜV Vibration Test
• TÜV compliance with RoHS Directive 2011/65/EU
• CE Certification: in accordance with applicable CE directives (2001/95/EC; 2014/35/EU)

Technical specifications

• Model: SN 24×32 MINI
• External dimensions (W × D × H): 245 × 320 × 100 mm
• Material: metal case; removable ABS tray
• Tray thickness: 0.8 mm – 2.00 mm (configurable)
• Currency insert: 4 horizontal banknote positions; 8 coin compartments; removable coin case
• Lock: 3-position keylock (single or 25-key variants)
• Opening mechanism: front sliding with polyurethane heavy-duty ball bearing rollers
• Solenoid options: 6V / 9V / 12V / 24V (24V option with micro-switch)
• Interfaces: RJ11/12, RJ12 female, jack, Bluetooth, USB
• PIN wiring scheme: 1 Case Ground / 2 Solenoid / 3 Microswitch / 4 Solenoid / 5 Microswitch / 6 Signal Ground
• Cable length: standard 1.20 m (customizable)
• Weight: 3.5 kg
• Durability: tested to 1,000,000 cycles
• Certifications: TÜV (Mechanical Safe, Drop, Vibration, RoHS) and CE (2001/95/EC; 2014/35/EU)
