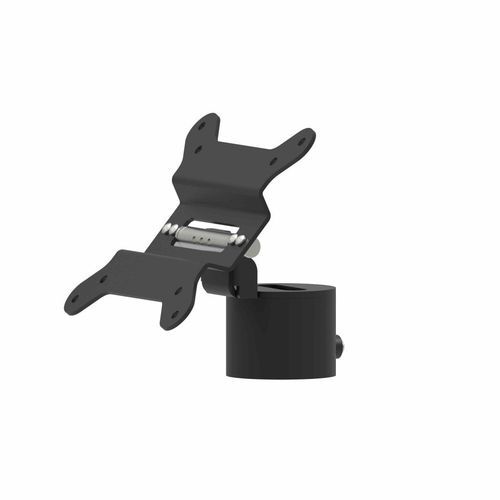

Desktop monitor support VESA 75/100 TOP PRO

VESA 75/100 TOP PRO pole-mounted display holder by SN Systems
The VESA 75/100 TOP PRO is a pole-mounted holder for VESA 75 and 100 displays and touchscreens. Designed for professional installations, it mounts on SNS-P# series poles and integrates a friction hinge for controlled tilt, a dedicated cable routing hole and a combination of FE360 steel and ABS components for stable mounting.

Key features and benefits
1. Compatibility

• Compatible with VESA 75×75 and 100×100 standards to fit a wide range of monitors and touchscreens.
• Designed for installation on SNS-P# series poles to ensure correct mechanical integration.

2. Adjustability with friction hinge

• Friction hinge enables precise tilt adjustment for ergonomic viewing angles.
• Tilt range of +124° / -23° supports interactive and fixed-display orientations.

3. Integrated cable management

• Dedicated cable routing hole organizes cabling and reduces strain on connectors during adjustments.

4. Materials and load capacity

• Frame in FE360 steel with ABS plastic components for structural stability.
• Maximum supported display weight: 15 kg.

5. Color and customization

• Available in Black, White or customizable RAL colors to match site aesthetics.

Product specifications

• Model / Commercial name: VESA 75/100 TOP PRO
• Product Code (SKU): SNS-V#T-PRO
• VESA compatibility: 75×75, 100×100 mm
• Tilt range (friction hinge): +124° / -23°
• Maximum display weight: 15 kg
• Materials: FE360 steel, ABS plastic
• Cable management: dedicated cable routing hole
• Mount type: pole-mounted (compatible with SNS-P# series)
• Color options: Black, White, customizable (RAL)

Typical applications and installation notes

• Suitable for retail kiosks, interactive information points, industrial workstations and public displays.
• Install on SNS-P# series poles following mechanical and electrical routing procedures; verify display weight and VESA pattern before mounting.
