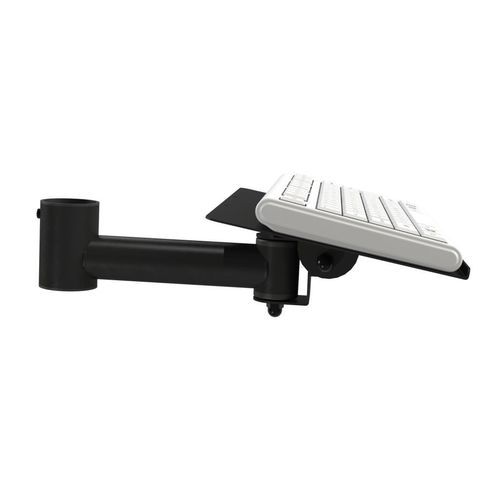

Pull-out keyboard shelf

Overview
Keyboard holder with included extension arm for mounting on the SNS-P# product series. Adjustable tilt and full rotation support ergonomic keyboard positioning for industrial operator stations.

Technical specifications

• Product Code: SNS#KEYB
• Compatibility: Designed for SNS-P# product series
• Keyboard plate size: 290 x 190 mm
• Fixed arm length: 180 mm
• Tilt range: +10° / -50°
• Rotation range: ±180°
• Available colors: Black, White, customizable (RAL)
• Materials: Steel FE360 and ABS plastic

Compatibility & installation

• Specifically developed for attachment to SNS-P# enclosures and consoles
• Verify model compatibility and mounting interfaces before installation
• Refer to SNS-P# documentation to confirm required mounting hardware

Applications

• Industrial operator stations and control panels
• Workstations requiring adjustable keyboard positioning
