Diesel engine drilling rig RT3-ST
down-the-holeconstructionpiling

Diesel engine drilling rig - RT3-ST - SOILMEC S.P.A. - down-the-hole / construction / piling
Diesel engine drilling rig - RT3-ST - SOILMEC S.P.A. - down-the-hole / construction / piling
Diesel engine drilling rig - RT3-ST - SOILMEC S.P.A. - down-the-hole / construction / piling - image - 2
Diesel engine drilling rig - RT3-ST - SOILMEC S.P.A. - down-the-hole / construction / piling - image - 3
Diesel engine drilling rig - RT3-ST - SOILMEC S.P.A. - down-the-hole / construction / piling - image - 4
Diesel engine drilling rig - RT3-ST - SOILMEC S.P.A. - down-the-hole / construction / piling - image - 5
Diesel engine drilling rig - RT3-ST - SOILMEC S.P.A. - down-the-hole / construction / piling - image - 6
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Operation
diesel engine
Type
down-the-hole
Other characteristics
construction, piling
Drilling diameter

3,000 mm
(118 in)

Description

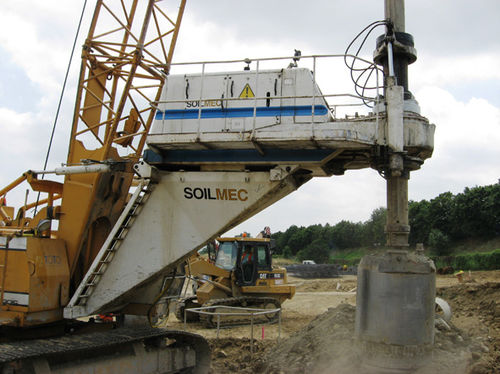

RT3-ST model allows to drill holes of diameters from 600 to 2500 mm to various depths up to 80 m. Some unique features of design and construction give the machine a high degree of efficiency and reliability: - 185 HP, GM 4-53T diesel engine with ZF 4WG181 torque converter - 3-roller table, with forced lubrication system and damping mounting through teflon rigs - 16 ton pull down system through two 760 mm stroke hydraulic jacks - fully detachable basic frame and subframe for ease of transport - special steel Kelly bars with throughout welded extruded driving ribs - intake air filter. Technical data Max diametermm3000 Max depthm80 Max torquekNm210 Min. crane capacityt40
