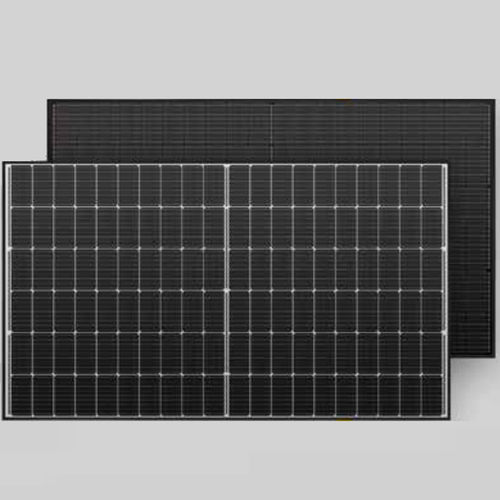

Monocrystalline solar module MONO S3

glass-glass

Mono S3 - Halfcut 360 W 365 W 370 W 375 W Half cell modules - High efficiency, high safety, high reliability Highly transparent self-cleaning glass High performance under low light conditions Resistant to environmental influences: Passed salt mist & ammonia test Area utilization up to 205.85 W/m2 9-busbar-technology - PID Free German warranty Temperature data Operating temperature - 40° C ~ + 85° C Nominal operating cell temperature 45 ± 2° C Power temperature coefficient TK (PMPP) - 0.390 %/K Voltage temperature coefficient TK (UOC) - 0.295 %/K Current temperature coefficient TK (ISC) 0.039 %/K Further information Number of cells 120 monocrystalline half cells (6 x 20) Size of cell 166 x 83 mm Module dimensions 1755 x 1038 x 35 mm Type of Frame Anodized aluminium alloy Max. system voltage 1500 V Reverse current loading capability 20 A Glass thickness 3.2 mm Weight about 19.5 kg Module connection MC4 compatible, 4.0 mm², cable length: (+) ≥ 1200 mm, (−) ≥ 1200 mm Junction box rating IP68 Allowable Hail Load 25 mm iceball with velocity of 23 m/s Snow load 5400 Pa =^ 550 kg/m Packaging Specifications Truck Dimension pallet (L/W/H) 180/113/117.5 cm Weight pallet approx. 635 kg Modules per pallet 30 Modules per truck 840 Shipment Dimension pallet (L/W/H) 180/113/117.5 cm Weight pallet approx. 635 kg Modules per pallet 30 Modules per container [40‘ HC] 780
