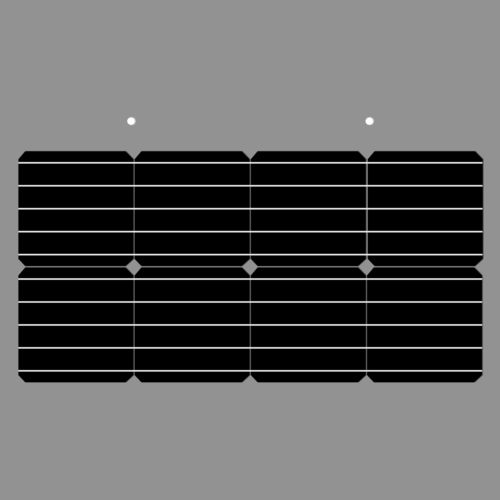

PV roof tile SI-ESF-M-BIPV-TL-M156-8H

flatglassred

Solar Innova uses the latest materials to manufacture photovoltaic glass solar roof tiles. Our solar roof tiles are ideal for any application that uses the photoelectric effect as a clean energy source because of its minimal chemical pollution and no noise pollution. The front of the solar roof tile contains a tempered solar glass curved with high transmissivity, low reflectivity and low iron content. This PV solar roof tile use high-efficiency monocrystalline silicon cells to transform the energy of sunlight into electric energy. Each cell is electrically rated to optimize the behavior of the module. The cell circuit is laminated using PVB (Polyvinyl Butyral) as an encapsulant which provides complete protection and seals against environmental agents and electrical insulation. The rear of the solar roof tile contains a tempered solar glass. The junction boxes with IP65, are made from high temperature resistant plastics and containing terminals, connection terminals and protection diodes (by-pass). These tiles are supplied with symmetric lengths of cable, with a diameter of copper section of 4 mm and an extremely low contact resistance, all designed to achieve the minimum voltage drop losses. Our tiles comply with all safety requirements not only flexibility but also double insulation and high resistance to UV rays, all are suitable for use in outdoor applications. The design of these modules makes their integration in both industrial and residential buildings (one of the most emerging sectors in the photovoltaic market), and other infrastructure, simple and aesthetic.
