Flat plate collector for vertical installation with 1/2" male connectors, flat-sealing, 3.2 mm solar safety glass, glass edge and adhesive protected by aluminium glass trim all round in standard. Colour Anthracite. Omega ultrasound-welded, highly selective aluminium/copper full-surface absorber with Omega heat conducting plates to guarantee a highly efficient transfer of heat. This collector serves perfect value for money.
High-quality tray collector
Aluminium / Copper absorber with Omega-heat-link
excellent value for money
only long lasting materials used
Available in two dimensions
large panel: 2.400 x 1.155 x 91 mm
gross area: 2,8 m²
small panel: 1.785 x 1.155 x 91 mm
gross area: 2,1 m²
Technic and application

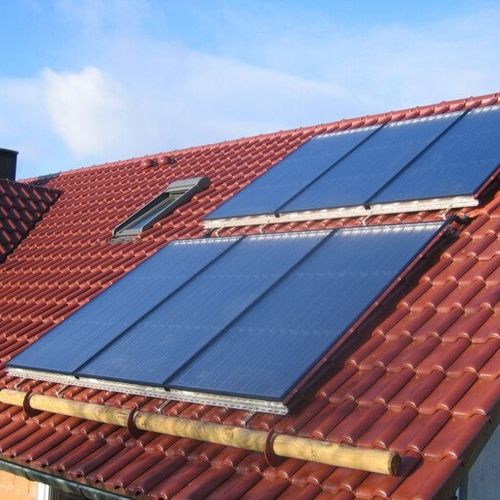

Why the structure of the collector should be important to you: because environmental influences such as wind, rain, dirt, UV radiation, snow loads and extreme variations in temperature are active on the collector over a period of decades. Depending on the situation on site the solar panel can be mounted stand-alone, in-roof or above the roof.
Collector tray - the 'foundation'
The panel casing has a tray form in order to be robust against wind, rain and other weather influences.
The high quality manufacturing process protects the inside of the collector for decades.
Absorber – the 'heart' of the collector
High-selective coated copper absorber with ultrasonic welded heat transfer medium pipe.
The floating absorber which is coated on both sides guarantees you the best energy yield.
The solar safety glass
3.2 mm low-iron, prism-structured solar safety glass.
Highest light transmission, impact and hail resistant.
