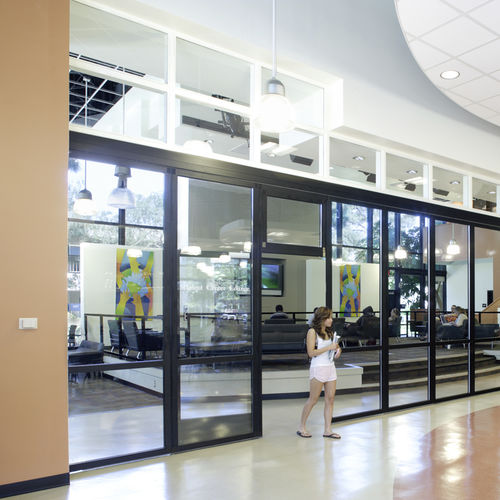

Stainless steel sliding system SL 60-HSW

glass doorverticalfor airport

The thermally insulated SL 60-HSW horizontal sliding wall has a thermal transmission coefficient of 1.51 W/m²K thanks to its high-quality aluminium profiles. As a result, it can be used to create flexible, energy-saving shop concepts for indoor and outdoor use. The innovative opening mechanism and zero-threshold running and track technology offer limitless creative freedom and ensure that the panels are easy to move to their parking positions. Special-alloy carriages with sealed bearings guarantee extremely smooth running for the panels – perfect for daily use. PROFILE SYSTEM . Thermally insulated aluminium profile system with fibreglass-reinforced polyamide thermal breaks . Panels suspended from running track using two carriages; each panel can be moved and locked in place separately . Panels can be locked in place and released from the inside by turning the flat, stainless steel Solarlux designer handles 180° ı . Panels guided into junctions . Running track available with additional facing battens . Variety of floor tracks available, all compliant with German standard DIN 18 040 on “Accessible construction” . Adjustable floor sockets available . Die-cast, thermally insulated corner pieces for sturdy panel profile joints SIGHT LINES . Frame: 2 – 115 mm . Panel: 60 mm . Panel joint: 131 mm . Running track building depth: 65/80 mm . Panel building depth: 59 mm SEALING SYSTEM . Double horizontal brush seals with flexible plastic baulk at top and bottom . EPDM seals with two sealing levels in vertical panel joint Glazing . Suitable for use with glass thicknesses of 5 – 40 mm . Dry glazing
