Facade decorative film AZUR 80 XC

PVCcoloredsolar protection

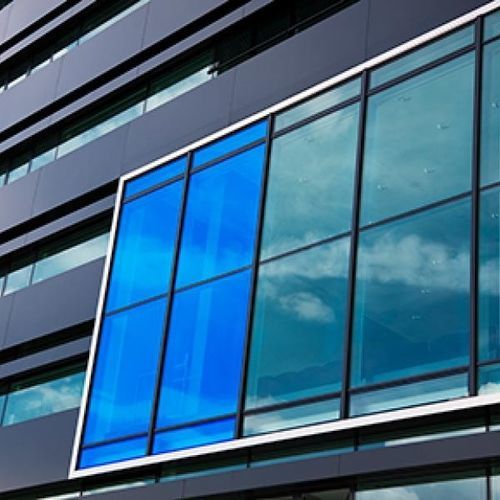

Azur 80 XC films are highly effective at reducing solar heat gain, whilst at the same time continuing to allow some natural light transmission. They provide effective protection against solar glare, conveying a touch of colour and originality to the external aspect of a building. TECHNICAL DATASHEET Data calculated based on film applied to clear glass 3 mm thick (*on double glazing 4-16-4) Ultraviolet transmission1 % Visible light transmission15 % Reflection of external visible light18 % Reflection of internal visible light62 % Total solar energy rejected79 % Total solar energy rejected 2*84 % Solar ratio : Solar energy reflection35 % Solar energy absorption55 % Solar energy transmission10 % Reduction in Solar Glare84 % g-value0.24 u-value5.13 Shading coefficient0.2 Installation type : External application Roll length30,5 m PET / PVC compositionPET Thickness50 μ Colour : BLUE
