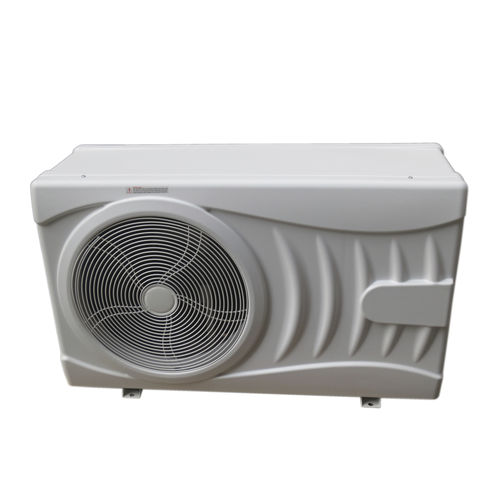

Air/water heat pump SPH SERIES
for swimming poolsoutdoorlow-temperature

air/water heat pump
air/water heat pump
air/water heat pump
air/water heat pump
Add to favorites
Compare this product


Characteristics

Type
air/water
Sector
for swimming pools
Interior/exterior unit
outdoor
Other characteristics
low-temperature
Heat output

6,000 W, 9,000 W, 11,000 W, 13,500 W, 18,000 W (20,473 BTU/h)

Description

Power Supply - V/Ph/Hz - 220V/1Ph/50Hz - Setting temp. Range - 15°C~40°C - Running Temp. Range - -5°C~43°C - Air 24°C /Water 27 °C [1] - Heating Capacity - W - 6000 - BTU - 20460 - Heating Input Power - W - 1050 Heating Running Current - A - 5,02 - COP 5,00 - Max. Current - A - 8 - Refrigerent Type - R410a Fan motor - Power Input - W - 70 - Fan Speed RPM - 820 - Condenser - - Titanium in PVC - Evaporator Hydrophilic aluminium/φ9.52 innergroove tube - Expansion Valve - Capillary - Controller LCD Mode/Function - Water Inlet/Outlst Dimension - " - 1.5" Hydraulic Connection - mm - PVC 50 - Water Flow Volume - m³/h - 3 - Sound Pressure Level at 1M/4M/10M [2] - kpa - 51/38/30
