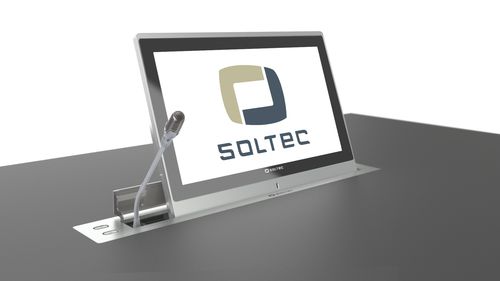

Retractable Motorized 15,6" Monitor. Native Resolution 1366x768. Anodized Aluminium Housing and Protective Glass. 20º Tilt adjustment at user choice.
Retractable Motorized 15.6” TFT monitor for boardroom
and meeting room tables. 20º tilt adjustment that can
be set according to user preference. High-end anodized
aluminium monitor housing with rounded corners.
Protective glass with black border serigraphy.
Automatic opening system for the cover plate,
avoiding contact between monitor housing and the
If an obstruction is detected on the cover plate, the
system stops and reverts the movement.
Brushed aluminium cover plate.
Monitor and cover plate can be customized with different
RS-232 serial control through DB9 connector.
RS-485/422 serial control through In/Out RJ45
connector allowing loop and addressing
Panel Technology Edge LED Technology
Display Area (mm) 344.23(H) x 193.53(V)
Pixel Pitch (mm) 0.252 x 0.252
Screen Aspect 16:9
Native Resolution 1.366 x 768
Viewing Angle UDLR 80º/80º/85º/85º
Contrast Ratio 500:1 (Typ)
Brightness cd/m2 300 (Typ)
Colors 16.7M Colors
Response Time 8ms Ton +Tof
Life Time (hours) 50.000
Protective Glass 3mm with black border
Analogue RGB Input 1xDB15
Digital Input 1xDVI-D
RS-232 Control 1xDB9
RS-485/422 Control 2xRJ45 (In/Out)
Remote Control 1xRS232, 1xRS485/422
Manual Control 2 Pushbuttons (Up/Down)
2 Pushbuttons (Tilt adjustment)
Power Adaptor 90 ~ 264VAC to 12VDC
47 ~ 63Hz
Power Consumption 30W
Energy Management VESA DPMS
