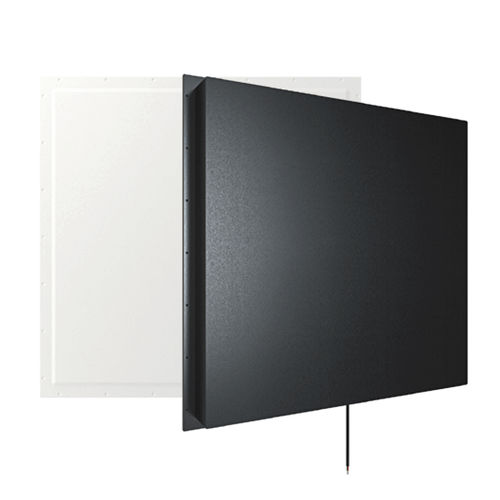

Built-in speaker IS15W

invisibleresidentialindoor

Wave Flex Drive Unit — Air Flex Woofer 592in² (3819cm²) air pulse diaphragm 15" (381mm) carbon fiber woofer Frequency Response 30Hz–250Hz (±3dB) Impedance 6 Ohms Nominal Sensitivity (2.83V/1m) 93dB Dispersion 180º hemispherical up to 10kHz UL Rating — Transformer — Transformer Taps — Mounting Depth 3.39" (86mm) Product Weight — Shipping Weight — Back Dimensions (W x H) 30.12” (765mm) x 30.12” (765mm) Compatible Space Saver IS-SAVER-XXL, SKU 93495 Compatible Enclosure NA SKU — Sonance Invisible Series KEY FEATURES MOTION FLEX TECHNOLOGY A suite of advancements in invisible speaker engineering for unparalleled acoustic performance from an invisible speaker WAVE FLEX DRIVE UNIT High-bandwidth midrange and high-frequency transducer that leverage the bending-wave principle, delivering velvety-smooth mids and crystal-clear highs AIR FLEX WOOFER Glass-fiber woofer coupled to an acoustically inert diaphragm to move a pocket of air like a piston for robust and powerful bass ACOUSTICALLY ISOLATED BAFFLE The diaphragm is split into two active areas that are completely isolated to enable ultra-low distortion sonic transparency like never before CONSTANT DIRECTIVITY CROSSOVER (CDX) The proprietary Sonance CDX provides uniquely smooth off-axis frequency response for greaterfidelity and coverage and almost 180° of horizontal and vertical dispersion SONANCE DEPTH IDENIFICATION SENSING CALIBRATION (DISC) SYSTEM
