Passive amplifier P6130audio
Add to favorites
Compare this product
Characteristics
- Other characteristics
- audio, passive
Description

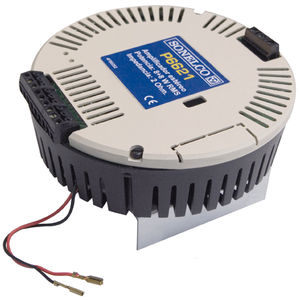

A Monophonic amplifi er of up to 8 w on a load of 2 Ohm. for
connection to 4" passive loudspeakers. Direct connection for
one loudspeaker, and connector for parallel connection of

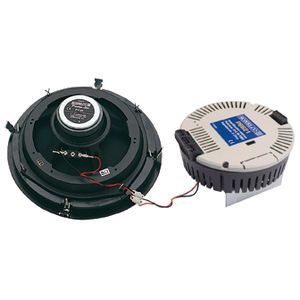

more loudspeakers. It is supplied as a separate unit to be
directly attached to the loudspeaker’s plastic support with the
two screws and nuts included. This enables a variety of
loudspeaker and power combinations (see attached table). The
sound level of the amplifier can be controlled by the sensitivity
adjustment potentiometer
Power: 8 W
Frequency Response: 75 Hz - 18 Khz
Sensitivity: 1,5 V
Mains Input: 16V DC
Maximum Consumption: 1 A
Standby Consumption: 54 mA
Dimensions: 83x43x24 mm
Weight: 40 g
