DIN rail interface module PL9674
telecommunicationstelephone network modem

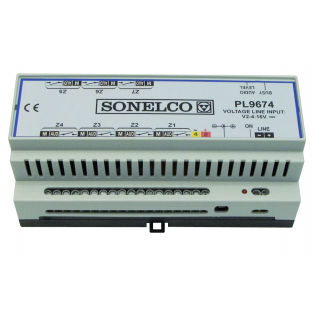

DIN rail interface module - PL9674 - Sonelco - telecommunications / telephone network modem
DIN rail interface module - PL9674 - Sonelco - telecommunications / telephone network modem
Add to favorites
Compare this product

Characteristics

Other characteristics
DIN rail
Network
telecommunications, telephone network modem

Description

Telephonic interface (DIN rail) to transmit messages by telephone to a public address system. The zone (1-7) or LLG are selected using a telephonic keypad. The module includes DTMF detector to detect multifrequency tones and to identify the zone number selected by telephonic keypad. ● Voice level adjustable by audio level potentiometer. ● Audio output, with priority control relay. ● "ON" call indicator led. ● Busy led indicating interface status. ● Protections to prevent line overvoltage. ● Connection by screw strips. Mains Input: 16 VDC Maximum Consumption: 130 mA Standby Consumption: 30 mA Dimensions: 157x85x57 mm Weight: 240 g
