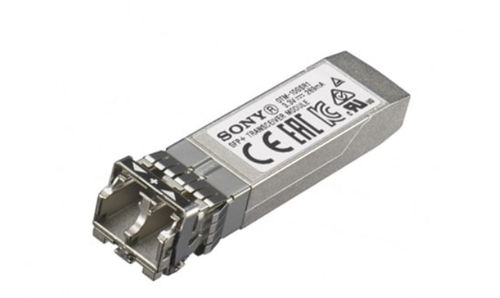

I/O module OTM-10GSR1

The OTM-10GSR1 SFP+ Ethernet transceiver supports multi-mode optical fibre for up to 300m. Power requirements 3.3 V DC Power consumption 1 W Dimensions 13.9 × 13 × 56.4 mm (9/16 × 17/32 × 2 1/4 in.) (width / height / depth) Mass 21 g (0.74 oz.) Temperature ranges Operating temperature: 5 °C to 40 °C (41 °F to 104 °F) Storage temperature: –20 °C to +60 °C (–4 °F to +140 °F) Optical I/O Connector Connector: LC Duplex optical connector Signal formats: IEEE802.3ae 10GBASE-SR Signal transmission speed: 10.3125 Gbps Media Type: Multi Mode Host interface Connector: Card edge connector Signal formats: SFF Committee SFF-8431 Specifications
