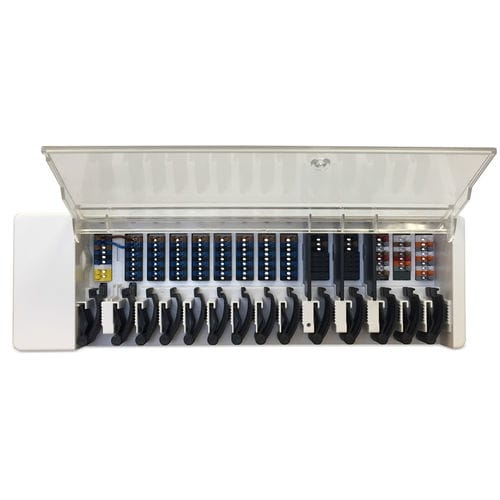

Air conditioner control °CALEONbox Clima

Universal system and individual room controller for surface heating and cooling systems in combination with up to 8 °CALEON Clima room controllers. The continuous dew point control in each room ensures safe and efficient cooling operation. Description The °CALEONbox Clima is a universal heating and individual room controller for surface heating and surface cooling systems. In combination with up to 8 °CALEON Climaroom controllers, this enables efficient use and function control of your surface heating and cooling with intuitive operation. The inputs and outputs can be freely assigned via °CALEON Clima, so that different heating and cool-ing systems can be implemented. Important characteristics of the °CALEONbox Clima: - Control of 8 heating and cooling zones with 1 - 4 thermostatic radiator valves each - Measurement of room temperature and humidity in combination with °CALEON room controllersor 1-Wire sensors - optionally weather compensated via an external temperature sensor - optional control of heating circuit pump and mixer (PWM oder 0-10V) possible - 2 separate CAN bus interfaces for building network and private floor or apartment network - connectable with other SOREL products via CAN bus - Control of mixers, valves and energy generators via 0-10V / PWM - 2 additional floating changeover contacts (terminals J and K) for flexible assignment - optionally usable with standard room thermostats - easy to install due to innovative strain relief and coloured terminal strip - optional up to 20 1-Wire temperature sensors connectable
