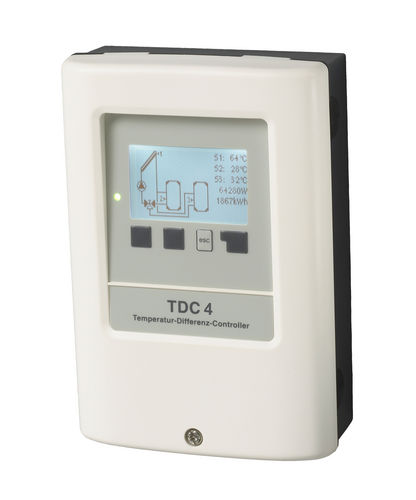

Universal controller with heat metering and speed control for 22 solar systems with 1-2 collector surfaces and 1-2 solar storages or swimming pool
Attractive housing (H 163mm W 110mm D 51mm) with various installation possibilities
High-contrast lighted display with extensive full-text and graphic mode
Self-explanatory operation via 4 softkey entry keys
Connections:
4 sensor inputs for Pt1000 temperature sensors
1 sensor input for Grundfos VFS sensor (flow and temperature measurement)
1 switching output for speed control of standard pumps with special electronics to ensure quiet running
1 switching output with 0..10V/PWM for speed control of high efficiency pumps
2 relay outputs 230VAC for pumps/valves/alarm etc.
