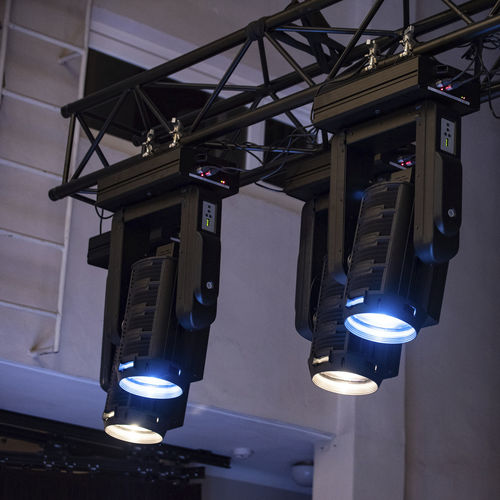

IP20 profile light PR HY 200 SERIES
LEDcommercialindoor

IP20 profile light
IP20 profile light
IP20 profile light
IP20 profile light
IP20 profile light
IP20 profile light
Add to favorites
Compare this product


Characteristics

Protection class
IP20
Light source
LED
Application
commercial
Interior/exterior use
indoor
Type
surface-mounted
Shape
square
Beam type
with zoom
Dimmable
dimmable
Other characteristics
adjustable
Height

335 mm
(13 in)

Length

640 mm, 760 mm
(25 in, 30 in)

Width

380 mm
(15 in)

Power

200 W

Luminous flux

Max.: 4,493 lm

Min.: 2,944 lm

Color temperature

Max.: 8,000 K

Min.: 2,700 K

Color rendering index (CRI)

85 unit, 94 unit, 95 unit, 97 unit

Description

High heat dissipation aluminum body with natural ventilation system Electrically adjustable fan speed High performance heat pipe cooling system Removable independent sliding shutters for shaping of the light beam Colour filter frame holder Gobo holder lodging Smooth and continuous lens position control Clutch locking system fork Adjustable fork for correct balancing of the headlight PO version on request with pole control 2 ways for pan and tilt movement ARC version on request, DMX motorization 2 ways for pan and tilt movement FUNCTIONAL FEATURES LED temperature control and management system for best-range working maintenance Color temperature adjustment (CCT) Scenes and cues recording and playback internal memory Constant Color temperature during dimming Silent mode option Intensity adjustment from 0 to full by pre-set dimmer curves Flicker-free wih adjustable PWM LED frequency for use with camera Frequency adjustable strobe function Master/slave function mode Functions feedback remote control (DMX-RDM) 8/16 bit control options on all channels HSI “Hue/Saturation/Intensity” configuration options CMY “Cyan/Magenta/Yellow” configuration options High performance heat pipe cooling system
