Roof hatch cage ladder Caged

fixedaluminumindustrial

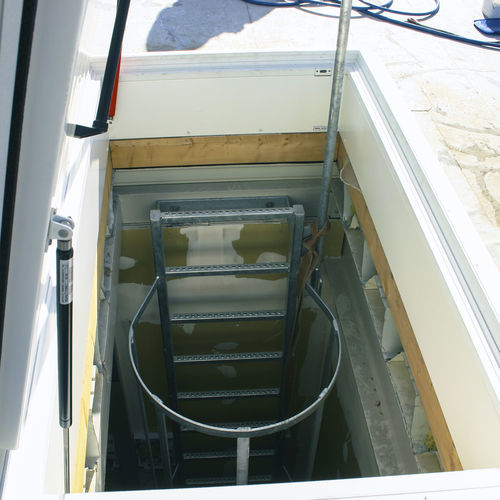

Roof Access Hatch with Fixed Ladder Safe access to great heights: Fixed ladders provide safe and reliable access to great heights, ideal for industrial and commercial applications. Always custom-made: Staka fixed ladders are always custom-made for your project. Space-saving: A fixed ladder takes up minimal floor space due to its compact design. Suitable for TOP97 TOP99 DL97 DL99 Dimensions Required roof opening: Equal to the clear opening of the roof access hatch Safety cage (Ø): 700 mm Ladder width: approx. 650 mm Ladder stiles: approx. 69 x 25 mm Rungs: approx. 30 x 33 mm Construction Ladder material: High-quality aluminum Access Handrail: Standard with safety cage for heights ≥ 3 meters Rungs: Wide, ergonomically shaped standing surface Versions 1 - ≤ 2 m Wall ladder 2 - ≤ 2.5 m Wall ladder 2.5 - ≤ 3 m Wall ladder 3 - ≤ 4 m Fixed ladder 4 - ≤ 5.5 m Fixed ladder 5.5 - ≤ 6 m Fixed ladder 6 - ≤ 7 m Fixed ladder 7 - ≤ 8 m Fixed ladder 8 - ≤ 8.5 m Fixed ladder 8.5 - ≤ 9.8 m Fixed ladder 9.8 - ≤ 10 m Fixed ladder Application Floor height: Standard up to a maximum of 10,000 mm Mounting: Wall-mounted using the supplied wall brackets Installation: When combined with a roof access hatch, the hatch cannot be installed at an angle. Wall brackets: Standard distance between the wall and the ladder center: 215 mm Quality Certification/Standard: Ladder complies with EN 14122-4 Options Exit aid: ACC0085 Ladder: Custom ladder for floor heights ≥ 10,000 mm, available on request Wall brackets: Custom wall brackets for distances ≥ 215 mm, available on request
