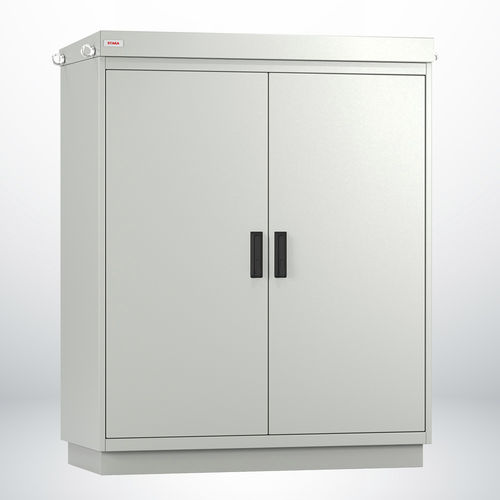

Floor-standing electrical enclosure RRNE2

industrialcommercialempty

Dimensions Internal enclosure (H x W x D): ± 1600 x 1400 x 600 mm External enclosure (H x W x D): ± 1710 x 1444 x 692 mm Mounting holes for foundation: 1360 x 400 mm Bolt holes: Ø 16 mm Weight: ± 393 kg Construction Material of internal enclosure: 2 mm stainless steel Material of external enclosure: 2 mm stainless steel Surface treatment: 60–80 µm polyester powder coating Colour: Standard RAL 7035, other colours available on request Lifting eyes: Standard on roof Grounding points: Standard on door(s) and body Closure Lever: Zamac swing lever with three-point locking Cylinder: Half Euro profile cylinder Door holder(s): Standard Inset door(s): Standard Inset hinges: Standard, stainless steel Performance Degree of protection: Standard IP55 / IK10 Climate control: Standard with exhaust fan (2x) Active cooling: 270 m³/h (per fan) Installation 19-inch profiles (supplied separately): 4 sets Switch compartment: left - right Mounting space: 30 U Clearance (H x W): 1378 x 586 mm
