IP20 moving head spot / LED / commercial / spot
DINO

Add to MyArchiExpo favorites
Compare this product Don’t compare this product
IP20 moving head spot IP20 moving head spot - DINO
{{requestButtons}}

Characteristics

  • Protection class:

    IP20

  • Light source:

    LED

  • Market:

    commercial

  • Beam type:

    spot

  • Location:

    outdoor

  • Other characteristics:

    color changer, adjustable

Description

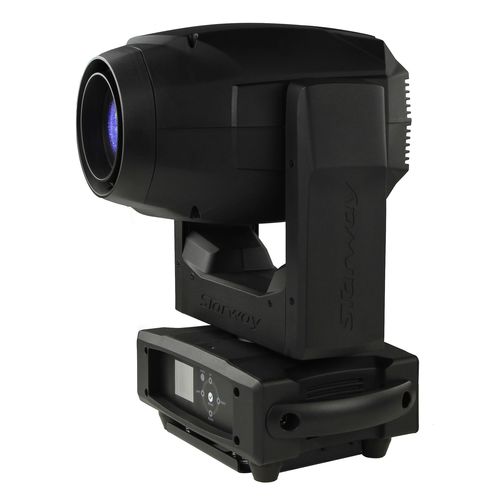

DINO is the new generation of automatic LED moving heads. Twenty years after the introduction of Starway’s cult range Servo Spot 250, it inaugurates our new range of ultra compact and powerful projectors.

DINO reinvents the LED Spot: 8000 lumens, 11.5 kg for a height of 47 cm, linear zoom of 10 to 25°, wheel of 8 colors, wheel of 6 rotating and indexable gobos, wheel of 6 fixed gobos, 5-facet linear and 6-facet circular prism, frost.

Technical characteristics

Source
LED white 200 W
Color temperature: 16 257 K
Refresh rate: 900 to 2 500 Hz
Luminous flux: 8 000 lumens
CRI: > 76

Optics
Opening angle: 10° à 25°
Motorized linear zoom
Output lens 80 mm

Movement
High movement precision through the use of three-phase motors
Operating mode 8 or 16 bit
Automatic repositioning
540° / 630° (pan), 270° (tilt)
Effects macros

Colors
1 color wheel 8 + open

Gobos
Static indexable gobo wheel: 6 + open
Rotating indexable gobo wheel: 6 + open
Gobo diameter: 23 mm
Image diameter: 19 mm

Dimmer
Mode 8-16 bit
4 dimming curves

Effetcs
Strobe 1-20 Hz
Frost
Rotating and indexable linear prism 5 facets
Rotating and indexable prism 6 facetts

Projector Control
Mode DMX 14 / 17 / 20 channel
Mode audio
Mode auto
RDM compatible
Software update through DMX
DMX Connection : XLR 3 + 5 pins

Power supply
100 to 240 Volts – 50/60 Hz
Consumption: 305 W
Power factor: 0,93
Power connectors: Powercon In/Out
Possibility of connecting 6 projectors online (240V)

Housing
Aluminum chassis
IP20
Forced air cooling, mode low, high and auto
Noise level in mode High: 55 dB

Installation
2 plates with Omega
Ambient temperature max: 45° C
Housing temperature max: 55° C
Conformity: CE, LVD, RoHS
