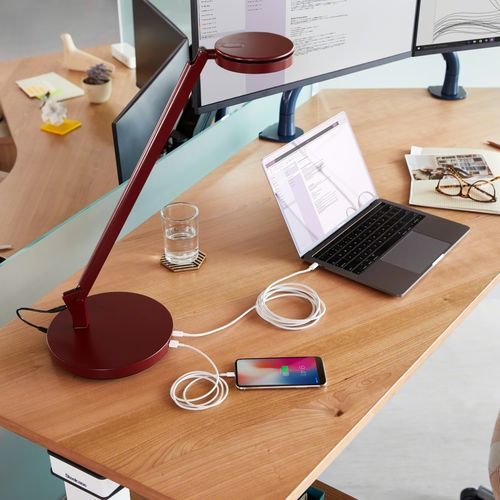

Table lamp DASH®

deskmetalcontemporary

Overview
The Dash LED task light is a high-performance personal task lamp that delivers uniform, low-contrast illumination for focused work. It features continuous dimming (15–100%), multiple articulation points for precise positioning, and optional occupancy sensing. The design reduces shadows and visual fatigue while providing thermal management for a cool-to-touch head.

Design & Performance

• Optical system engineered to reduce contrast and eliminate distracting shadows.
• Continuous dimming control from 100% down to 15% for tailored light levels.
• Convection airflow in the head to reduce heat transfer and prolong component life.
• Optional PIR occupancy sensor (approx. 36" / 91 cm activation range) to switch the luminaire off when not in use.

Key Features

• System wattage: 9.3 W
• Rated LED life: 50,000 hours
• Color temperature: 3,500 K
• Polished textured reflector
• Three pivot points (Dash) / two pivot points (Dash Mini)
• Momentary soft-touch switch and user-adjustable tension control knobs
• Optional 2-port USB base (1× USB‑C up to 60 W, 1× USB‑A 2.4 A)
• Variable spring force for smooth positioning
• Replaceable light head and dual conductivity path to prevent power loss

Mounting Options

• Freestanding
• Freestanding USB base
• Rail-mounted (integrated rail / c:scape)
• C-clamp mount
• Panel-mounted
• Slatwall / SlatRail mounted

Dimensions

• Dash: three tension knobs; horizontal arm range 0"–37" (0–94 cm); vertical height 2"–25" (5–64 cm); 360° head rotation; weight with base 9.65 lbs (≈4.38 kg); weight with bracket 2 lbs (≈0.91 kg).
• Dash Mini: two tension knobs; horizontal arm range 0"–24" (0–61 cm); vertical height 0"–20 3/8" (0–52 cm); 360° head rotation; weight with base 9.25 lbs (≈4.20 kg); weight with bracket 1.8 lbs (≈0.82 kg).

Sustainability
The product is designed with life‑cycle and cradle‑to‑cradle principles: responsible material sourcing, minimized life‑cycle environmental impacts, ensured material health, and strategies for end‑of‑use recovery and reuse.

Technical specifications

• System Wattage: 9.3 W
• LED life: 50,000 hours (rated)
• Color temperature: 3,500 K
• Dimming: continuous range 100% → 15%
• Articulation: Dash three pivot points; Dash Mini two pivot points
• Controls: momentary soft‑touch switch; user‑adjustable tension control knobs
• Optional: PIR occupancy sensor (approx. 36" / 91 cm)
• Optional USB base: 1× USB‑C (up to 60 W), 1× USB‑A (2.4 A)
• Thermal management: convection airflow in head
• Serviceability: replaceable light head; dual conductivity path to prevent power loss
• Weights: Dash with base 9.65 lbs; Dash with bracket 2 lbs; Dash Mini with base 9.25 lbs; Dash Mini with bracket 1.8 lbs
