Sample tile display rack FUTURA DELUXE

free-standingsheet metalwood

Product overview

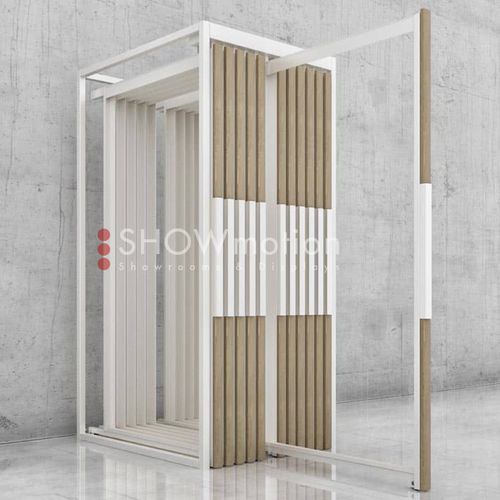

Futura Deluxe is a free-standing display stand with one-sided pull-out frames designed for presenting large sample panels in architecture and interior design showrooms. The DELUXE version features a sheet-metal handle combined with a wooden cover for a refined finish and easier handling.

Panel types and capacities
Supported panel formats: 101 × 201 cm (max. thickness 2.9 cm) and 122 × 244 cm (max. thickness 2.9 cm).

Available variants

• Futura 6 Deluxe — 6 sample panels
  • 101×201 cm: Dimensions: 546 x 1230/2265 x H.2260 mm; Maximum frame load: 60 Kg.
• Futura 6 Deluxe — 6 sample panels
  • 122×244 cm: Dimensions: 546 x 1445/2693 x H.2695 mm; Maximum frame load: 80 Kg.
• Futura 12 Deluxe — 12 sample panels
  • 101×201 cm: Dimensions: 996 x 1230/2265 x H.2260 mm; Maximum frame load: 60 Kg.
• Futura 12 Deluxe — 12 sample panels
  • 122×244 cm: Dimensions: 996 x 1445/2693 x H.2695 mm; Maximum frame load: 80 Kg.
• Futura 14 Deluxe — 14 sample panels
  • 101×201 cm: Dimensions: 1146 x 1230/2265 x H.2260 mm; Maximum frame load: 60 Kg.
• Futura 14 Deluxe — 14 sample panels
  • 122×244 cm: Dimensions: 546 x 1445/2693 x H.2695 mm; Maximum frame load: 80 Kg.

RAL and finishes

• Shiny smooth: RAL 9001, RAL 9003, RAL 9006, RAL 9007, RAL 9010
• Matt smooth: RAL 9005, RAL 9016
• Matt embossed (wrinkled): RAL 7011, RAL 7015, RAL 7016, RAL 7035, RAL 7036, RAL 9006

Technical specifications

• Type: Free-standing display with one-sided pull-out frames for large-format sample panels.
• DELUXE feature: sheet metal handle combined with a wooden cover for improved grip and aesthetics.
• Supported panel thickness: up to 2.9 cm for both 101×201 and 122×244 formats.
• Frame maximum loads: 60 Kg (for 101×201 configurations) and 80 Kg (for 122×244 configurations), depending on variant.
• Suitable for showroom, material library and specification display in architecture and interior design environments.
