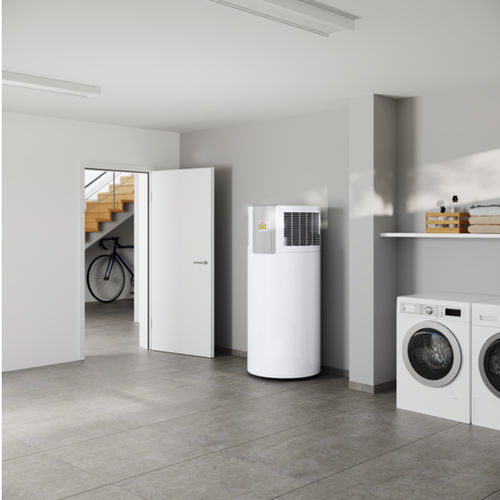

Air/water heat pump SHP-A 220 PLUS

residentialsplitfor hot water

Hygienic DHW temperatures up to 65 °C achievable in efficient heat pump mode Can be integrated into a smart grid (SG Ready) Maximum reliability and cost savings due to maintenance-free cylinder protection (impressed current anode) Achieves the highest possible energy efficiency in this product group with A+ Self-sufficiency in your own home is an important factor.You can take a big step in the right direction with this DHW heat pump.Not only does it use renewable sources for DHW heating, but with its superbly insulated cylinder, it also achieves excellent output values.For you, that means hot water for a bath or shower whenever you need it – with low energy consumption. A user friendly LCD screen helps you operate the appliance.It shows you at a glance how much mixed water is currently available.Would you like to connect the heat pump to your photovoltaic system?Nothing could be simpler.The appliance comes with this option as standard, allowing you to make clever use of energy from the sun as well as the air. Average heating output (A15 / W10-55): 1,6 kW Average heating output (A7 / W10-55): 1,3 kW COP (EN 16147 / A20): 3,55 COP (EN 16147 / A7): 2,68 Nominal load profile (EN 16147): L Nominal DHW temperature (EN 16147): 55 °C Maximum available nominal amount of DHW at 40 °C (EN 16147 / A20): 278 l Min./max. application limits for heat source: +6/+42 °C Max. DHW temperature with heat pump: 65 °C Nominal capacity: 220 l Max. mixed water amount at 40 °C: 330 l
