Air/water heat pump HPA-O 05.2 PLUS HC 230

residentialhomerooftop

Overview
Outdoor air-to-water heat pump for heating, cooling and domestic hot water. Designed for use with radiators or underfloor heating, the HPA-O 05.2 Plus HC 230 delivers efficient heating performance down to very low outside temperatures and achieves high seasonal efficiency in new-build and modernisation projects. The unit uses the natural refrigerant R290.

Installation & Operation

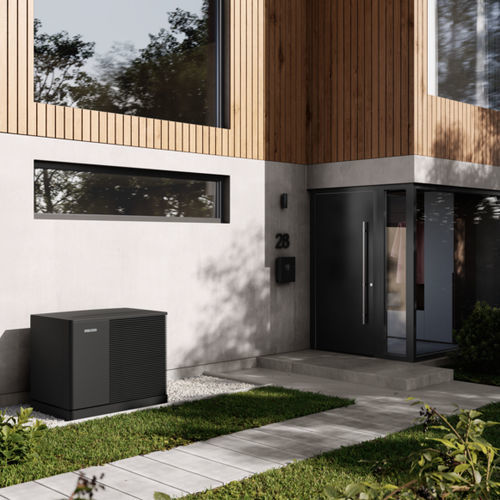

Flexible mounting options: flat roof, wall bracket or ground mounting with appropriate accessories. Exceptionally quiet operation enables installation in space-restricted locations. The system supports remote control via an app when paired with the required additional components. Optional cladding, wall bracket and feet enable visual integration with the building façade.

Key features

• Outdoor air-to-water heat pump for heating and cooling
• Low noise level for flexible placement even in constrained sites
• Compatible with classic radiators and underfloor heating systems
• Suitable for new build, modernisation and existing buildings
• Natural refrigerant R290 for future-oriented performance
• App control available with additional components
• Colour options: anthracite or white for easier visual integration

Series variants (selection)

• HPA-O 05.2 Plus HC 230 — Heating output at A-7/W35: 5.22 kW
• HPA-O 07.2 Plus HC 230 — Heating output: 7.09 kW
• HPA-O 10.2 Plus HC 230 — Heating output: 10.07 kW
• HPA-O 13.2 Plus HC 400 — Heating output: 13.15 kW

Caractéristiques / spécifications techniques

• Product Number: 207429
• EAN / GTIN-13: 4017212074299
• SCOP 35 °C (EN 14825): 5.35
• SCOP 55 °C (EN 14825): 4.07
• Heating output at A2/W35 (EN 14511): 3.14 kW
• Heating output at A-7/W35 (EN 14511): 5.22 kW
• COP at A2/W35 (EN 14511): 4.72
• COP at A-7/W35 (EN 14511): 3.47
• Sound power level (EN 12102): 43 dB(A)
• Min./max. application limits for heat source: -25 / 40 °C
• Min. application limit on heating side: 15 °C
• Max. application limit on heating side: 75 °C
• Height: 960 mm
• Width: 1170 mm
• Depth: 727 mm
• Weight: 141 kg
• Refrigerant: R290
• Colour: Dark grey RAL 7021
