Painted steel bus shelter NOVIO

pinefrosted glasstempered glass

Product subtitle Design by Jan Padrnos

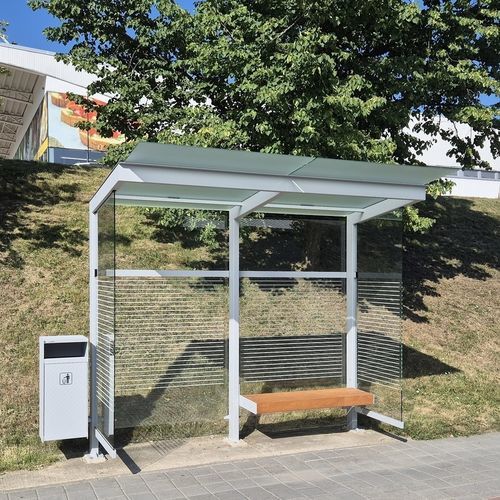

Description The NOVIO shelter is a modular bus-stop pavilion for urban and suburban locations. Its steel profile and shaped-sheet modular construction provides structural stability while allowing configuration from two to six modules. The roof is glazed with Satinato safety tempered glass (frosted finish) to reduce glare. Rear and optional side walls are clear safety glass with horizontal safety printing; an optional solid wooden back panel is available.

Models

• ZPN211 — L×W×H: 2740×1740×2498 mm — 2 modules / without sides
• ZPN212 — L×W×H: 2740×1740×2498 mm — 2 modules / with sides
• ZPN311 — L×W×H: 4080×1740×2498 mm — 3 modules / without sides
• ZPN312 — L×W×H: 4080×1740×2498 mm — 3 modules / with sides

Materials

• Metal parts: finish options RAL 7016, RAL 9005, RAL 9006, RAL 9007
• Wooden parts: Tropical wood or Pine TW
• Panelling: clear safety glass or Satinato safety glass

Additional product notes The supporting structure is galvanised steel, powder-coated. Wall panels are made from tempered safety glass or solid wood. Roof glazing uses Satinato tempered safety glass. The bench is modular, composed of solid wood slats fixed to a cantilever support with stainless steel screws. Base flanges enable concealed anchoring below ground level.

Technical specifications

• Product name / model: NOVIO
• Design: by Jan Padrnos
• Structure: galvanised steel, powder-coated
• Roof glazing: Satinato safety tempered glass (frosted)
• Rear/side walls: clear safety tempered glass with horizontal safety printing or optional solid wood back panel
• Bench: modular solid wood bench, fixed to cantilever support with stainless steel screws
• Anchoring: flanges for concealed anchoring below ground level
• Available sizes / modules: from two-module to six-module configurations (examples: ZPN211, ZPN212, ZPN311, ZPN312)
• Sizing examples (L×W×H): 2740×1740×2498 mm; 4080×1740×2498 mm
• Options & accessories: side panels or open sides; hanging MAG series litter bin; lighting; stop name sign; extended integrated seat
• Design highlights: modular configuration for layout flexibility; safety printing on glass for visibility
