Quick Overview

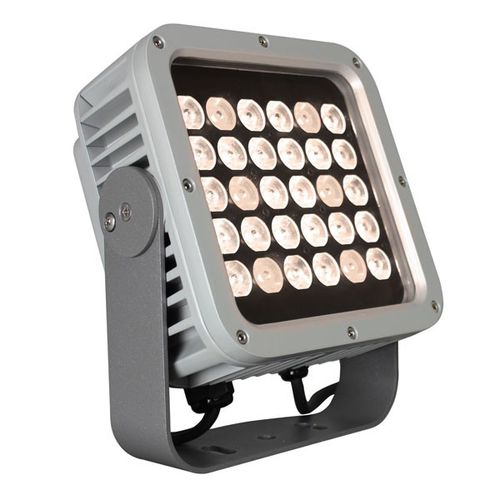

SMART MAX30 RDM WB (White Balance - tunable white) is our new DMX RDM floodlight projector with compact design and robust aluminium case suitable for accent lighting. IP67 rating protection.
Fixture colour finishing is grey.
• SOURCE
15 warm white (2700K) + 15 cool white (6500K) NICHIA-NVSL219C
Total out lumen: 4500lm @4000K
Total light power: 40W
• OPTIC
24° (23mm lenses) PMMA 8N and 4mm ultra white tempered glass
On request: 12°, 36°, 10°x30°, 15°x55°
• TILT
Manual 175°
• CONNECTIONS
Signal: 3pin IP 67 male-female connector
Main Power: 3x1mm cable 1,5mt. with bare ends
• CONTROL - SETUP
Standard interface: RS-485
Protocol: USITT DMX512 / RDM
> Available as accessories: Wireless DMX receiver
RDM control/configuration or by DRS (remote control device)
Dedicated DMX channel for white balance
DMX or Auto mode with Master-Slave function
Intelligent temperature control
Halogen simulation
Flicker-free function
Smooth dimming function
• IP 67 RATING PROTECTION
• POWER SUPPLY
Voltage range: 100-240VAC
Frequency range: 47-63Hz
Active Power factor:
PF>0.90@230VAC
Current: 0.2A@230VAC
Power consumption: 44W
• DMX CHANNELS
- 4 ch mode
- 2 ch mode
- 1 ch mode
• MATERIALS
- housing in die-cast aluminium
- bracket in stainless steel
- ultra clear white 4mm tempered glass
• PHYSICAL
WxDxH: 205x110x235mm
Weight: 3,2 Kg.
