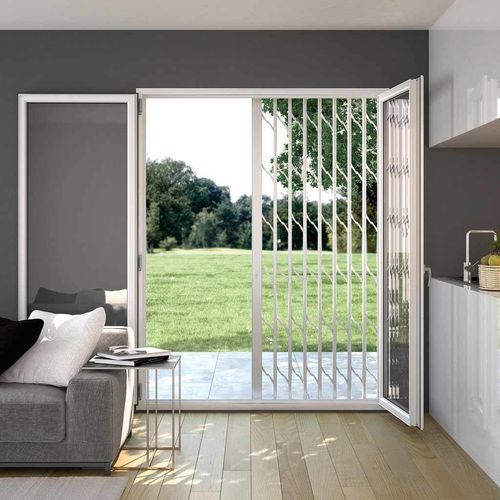

Sliding security grill MODEL Q.7

foldingwallretractable

Product overview
(ENV 1627 – CLASS 4) The PRÆSIDIUM® security collapsible grate for doors and windows is designed to provide a burglar-proof barrier while maintaining functionality and minimal visual impact. It is engineered for use on doors, windows and shop fronts.

Key features

• Security: certified burglar-resistant barrier suitable for doors, windows and shop windows.
• Functionality: secure and easy to manoeuvre when opening or closing.
• Simplicity: compact structure designed to minimise visual obstruction.
• Integration: rational and elegant design that integrates with various architectural styles.

Operation and locking
The grate can be fully opened and collapsed into a compact pack on one or both sides, leaving the opening completely free. It closes quickly via a patented sliding system and is secured by a special lock with three-point locking. EUROPEAN PATENT N. 557 254.

Materials and construction
Profiles are internally armour-plated with revolving rods in galvanised steel to resist cutting and forced entry. Horizontal levers are made of carbon-nitride steel (cut-resistant), galvanised and polyester powder coated for corrosion resistance (certified). Levers and bars are connected by shaped metal links that are stain-proof. Reduced frame depth allows installation alongside other frame types such as shutters. Due to the small pack size, the grate can be fully retracted into a compact built-in box within the wall.

Finishes

• 9010
• Marble Brown
• 9005 Matte
• Marble Grey
• 7016 Matte
• 9007
• 9006
• 7035
• 1013
• 9016
• T10
• Colours on request

Caractéristiques / spécifications techniques

• Model: Model Q.7
• Frame depth: 70 mm
• Vertical bars: 4 revolving steel rods per vertical bar, Ø 8 mm
• Thickness of levers: 12 mm
• Lock: anti-corrosion treatment and anti-drill protection plate; anti-drill cylinder; three-point locking
• Certifications: Anti-burglary certification (ENV 1627)
• Corrosion certification: (UNI 568773)
• Patented sliding system for rapid opening/closing
• Profiles armour-plated internally; horizontal levers in carbon-nitride steel, galvanised and polyester powder coated (cut-resistant and corrosion-resistant)
• Can be retracted into a small built-in box in the wall for minimal pack size
