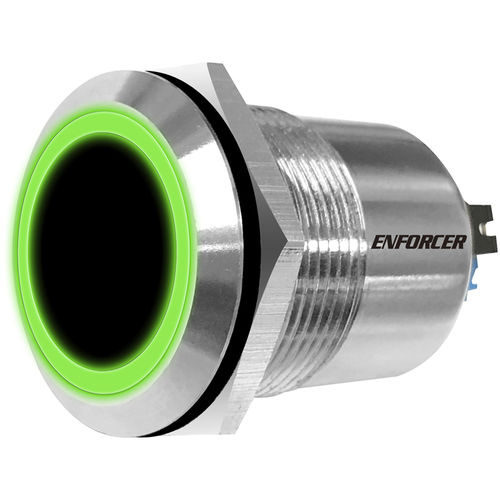

Infrared presence sensor CS-PD series

outdoorbuilt-incommercial

The ENFORCER IR Proximity Sensor is a compact sensor that can be programmed to trigger an alarm when an object (such as a valuable possession) is removed from the sensing area or unlock an electronic door lock when an object (such as a hand) is passed in front of the sensor. This flexibility makes the sensor ideal for both anti-theft and access control applications. FEATURES • Triggers a warning or locking device when the sensor is triggered • Form C relay output (1A@30VDC) • Adjustable output time (1~20 s) or toggle mode • Adjustable sensing range 2~6 in (5~15 cm) • 12~24 VDC Operation • Front panel IP65 weatherproof for outdoor use SPECIFICATIONS Type - Proximity Sensor Operating voltage - 12~24 VDC Power consumption - 30mA@12VDC/35mA@24VDC Relay type - Form C dry contact, NO/NC/COM, 1A@24VDC, 0.5A@12VAC Connectors - Wire terminals Response time - 10mS Output time - 0.5~20s, toggle Range - 1-9/16 LED Status indicator - Selectable red/green or green/red Operating life - Relay: 1,000,000 cycles/Sensor: 100,000 hours IP Rating - IP65 Operating temperature - -4°~131° F (-20°~55° C) Case material - Stainless steel and polycarbonate Dimensions - ø1-7/8
