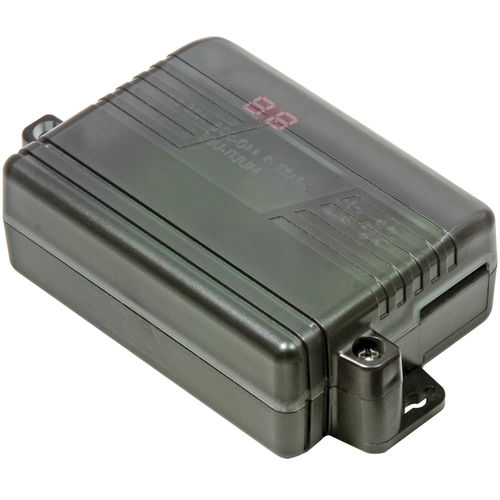

RF receiver HL-951R series

control

The ENFORCER 900MHz HL-Series RF transmitters and receivers use digital modulation for improved immunity to interference, better signal penetration in environments with heavy obstructions, and significantly longer range of up to 1,800ft (550m)* line of sight. The transmitter's ultra-low power consumption gives you longer battery life with easy-to-obtain coin-type batteries (CR-2032). FEATURES * Wide voltage range, 10~24 VAC or 9~48 VDC * PCB antenna – no external antenna to be installed, adjusted, vandalized, or damaged * Five individually programmable output modes * Up to 99 button codes per channel * Programming by switch, no need to cut jumpers * LED Indicates RF reception and programming functions * RF Signal strength test mode * Compatible with all HL-series SECO-LARM transmitters of same frequency SPECIFICATIONS Type - Receivers Operating frequency - 917MHz Memory capacity - 99 transmitter button codes per channel Operating voltage - 10~24 VAC, 9~48 VDC Operating current - Standby - 8mA@12VDC / 5mA@24VDC / 2mA@48VDC (typical) Operating current - Active - 100mA@12VDC / 50mA@24VDC / 25mA@48VDC per channel Relay output - Type - Independent, sequence, access control Relay output - Modes - 1~99 sec momentary (default, 1s), 1~99 min momentary, toggle, latch, follow (validity) Relay contacts - Number - 1 Relay contacts - Rating - Form C 10A@14VDC Digital display - 2-Digit, 7-segment LED Connectors - Screw terminals, +, -, with NO/NC/COM per relay Operating temperature - -40°~167° F (-40°~75° C) Dimensions - 3-15/16"x2-1/2"x1-3/16" (100x63x30 mm)
