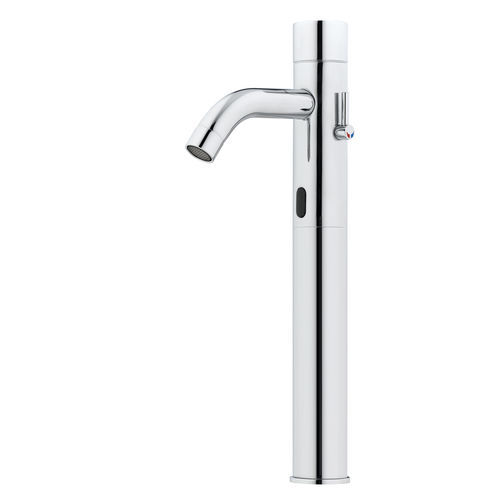

Deck mounted raised electronic tap EXTREME
with different available heights
EXTREME automatic electronic tap, long extended version for washbasin bowl.
Its elegant design brings a modern and refined style to your sanitary spaces.
The faucet is designed for an easy installation and maintenance, with all its components integrated into the all body.
Easy battery access under the washbasin.
Automatic faucet EXTREME PLUS
Technical Features
- Pre-adjusted infrared detection, optimized or adjustable by remote control (flow time, sensor range, temporary stop).
- Temporary stop after 90 seconds when water runs non-stop (adjustable by remote control).
- Indicator light when batteries need changing.
- 230/9V transformer or 9V battery power supply.
- Low energy consumption, batteries last around 3 years.
- Water pressure: 0.3 – 8.0 bars.
- Maximum temperature 70°C.
- Mixes cold and hot water on mixer version, with solenoid valve integrated into the faucet body.
- NEOPERL orientable aerator to adjust the water stream direction, with 6 LPM limited flow rate (1,9 LPM. or 3 LPM. on request).
- SPEX hoses (resistant to chlorinated disinfection and temperature increase) with non return valve integrated.
- CE. ACS. norm compliant. 3 year warranty.
OPTIONS:
Remote control RES-31
Brushed finish (minimum quantity)
Anti-legionella hygienic flush
Limited flow rate 1,9 LPM or 3 LPM
Extension according to washbasin height 45, 110, 163 or 230 mm.
Version L extended spout 176 mm
LED: bright ring
IP68 transformer (ref. RES-292)
230/12V IP 68 transformer to supply from 1 to 4 faucets (ref. RES-294)
Junction box 230/12V to supply up to 10 faucets (ref. RES-295)
