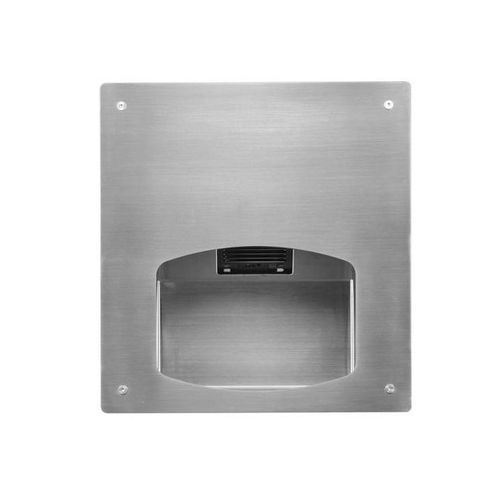

Automatic hand dryer SMH-91

built-instainless steelfor handicapped

Recessed automatic hand dryer in stainless steel by infrared detection. The principal advantage of a recessed hand dryer with hot air is to create space for bathrooms. It is also more pleasant by avoiding handicap people from hurting themselves on the hand dryer. Also, it reduces risks of vandalism or from stealing the hand dryer. Our recessed hand dryer is in stainless steel type 304, which can correspond to all types of bathrooms. The 2200W hand dryer lets out a soft heat with a low noise level. This hand dryer is convenient for commercial buildings, to primary schools or any place which requires a silenced recessed hand dryer. Front in brushed stainless steel thickness 2 mm. Engine 200W technology « brushless » without charcoal needing replacing. Blue LED when working. Cleaning and maintenance made easy. Quiet sound level: 65 dB at 1 m. Sensor Infrared auto-adjustable Sensor range 170 mm ± 20 mm, adjustable Voltage supply 220/240 V, 50/60 Hz, 1.8 / 2.2 kW. Amperage : 8.4 / 9.2A. Electrical insulation Class I Protection rating IP 21 (option IP23) Standby consumption 1,5 W Security Automatic switch-off in case of an irregular use, more than 60 seconds Engine with security thermostat at 95° C Resistance stop by thermic fuse at 142°C Stainless steel thickness 2 mm Finish Brushed Power 2200 W Air speed 20,5 m/s Air flow 236 m³/h Drying time Less than 30 to 35 seconds Sound level 65 dB at 1 m Rough wall opening W323 x D155 x H346 mm Weight 9.2 kg Dimensions W330 x D180 x H350 mm Warranty 3 years. CE.
