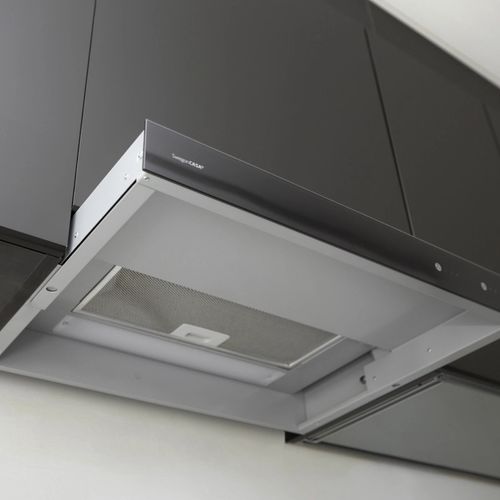

Built-in range hood CASA SALSA GENIUSfor domestic useductedductless
Add to favorites
Compare this product
Characteristics
- Type
- built-in
- Market
- for domestic use
- Ventilation
- ducted, ductless
- Options
- with built-in lighting, low-noise, with touchscreen, retractable, slide-out, telescopic
- Color
- gray
- Width
600 mm
(24 in)
Description
Short summary
Product details
CASA Salsa removes cooking fumes, heat and humidity to the outside, unlike recirculating hoods. High odour catching capacity enables effective fume removal at lower airflows, reducing energy use, pressure differences and noise. When connected to a ventilation unit, the hood uses the ventilation unit's fan — no separate hood fan or dedicated kitchen exhaust ducting is required. This arrangement typically results in lower sound levels at the kitchen compared with hoods that contain an internal fan. The ventilation mode can be controlled from the cooker hood (home / away / boost) and the ventilation unit automatically compensates the extracted cooking air to avoid negative pressure in the building. Older AC ventilation units can be controlled using the ITFC transformer accessory.
The hood can also be connected to a separate roof fan (silent option). It supports direct connection to external EC fans and to AC fans via the ITFC transformer accessory.
CASA Salsa is a pull-out cooker hood that integrates flush with kitchen cabinets when closed and is pulled out for cooking. Smooth surfaces and washable metal grease filters simplify maintenance. Lighting is provided by maintenance-free LEDs with adjustable brightness. The 24 V variant includes a mains transformer for voltage protection, yielding low power consumption and safe operation. All electrical connections are located above the hood for quick and easy installation.
Safety / Stove guard (optional)
The Salsa can be fitted with the Safera Safety stove guard system. The stove guard helps prevent common kitchen accidents by inhibiting unattended operation and cutting power if a cooker is left on. On Salsa models with Safera the stove guard is preinstalled in the hood. Installation also requires an approved power control unit (1-phase or 3-phase). A water leakage monitor (SA1) is recommended.
Accessories
Specifications / technical data
- Extensible cooker hood for ventilation units and roof fans
- Compatible with Swegon CASA Smart and CASA Genius units or external roof fans
- High odour capture: 76% at 40 l/s (144 m3/h)
- Extensible (pull-out during cooking) — fits flush with kitchen cabinets when closed
- Available widths: 500 mm or 600 mm
Product details
CASA Salsa removes cooking fumes, heat and humidity to the outside, unlike recirculating hoods. High odour catching capacity enables effective fume removal at lower airflows, reducing energy use, pressure differences and noise. When connected to a ventilation unit, the hood uses the ventilation unit's fan — no separate hood fan or dedicated kitchen exhaust ducting is required. This arrangement typically results in lower sound levels at the kitchen compared with hoods that contain an internal fan. The ventilation mode can be controlled from the cooker hood (home / away / boost) and the ventilation unit automatically compensates the extracted cooking air to avoid negative pressure in the building. Older AC ventilation units can be controlled using the ITFC transformer accessory.
The hood can also be connected to a separate roof fan (silent option). It supports direct connection to external EC fans and to AC fans via the ITFC transformer accessory.
CASA Salsa is a pull-out cooker hood that integrates flush with kitchen cabinets when closed and is pulled out for cooking. Smooth surfaces and washable metal grease filters simplify maintenance. Lighting is provided by maintenance-free LEDs with adjustable brightness. The 24 V variant includes a mains transformer for voltage protection, yielding low power consumption and safe operation. All electrical connections are located above the hood for quick and easy installation.
Safety / Stove guard (optional)
The Salsa can be fitted with the Safera Safety stove guard system. The stove guard helps prevent common kitchen accidents by inhibiting unattended operation and cutting power if a cooker is left on. On Salsa models with Safera the stove guard is preinstalled in the hood. Installation also requires an approved power control unit (1-phase or 3-phase). A water leakage monitor (SA1) is recommended.
Accessories
- CHR | CHR24V — auxiliary relay 230 V for actuator control; cooker hood relay 24 VDC
- ITFC transformer — accessory for controlling older AC ventilation units from the hood
Specifications / technical data
- Compatibility: Swegon CASA Smart and CASA Genius ventilation units; also connects to external roof fans (EC fans directly; AC fans via ITFC)
- Odour extraction performance: 76% capture at 40 l/s (144 m3/h)
- Operation: Extensible/pull-out hood; flush integration with kitchen cabinets when closed
- Control: Touch control; ventilation modes: home / away / boost
- Lighting: Maintenance-free LED lighting with adjustable brightness
- Installation: Designed for installation in a kitchen cabinet; electrical connections located above the hood
- Voltage protection: 24 V (mains transformer included for 24 V variant)
- Width options: 500 mm or 600 mm
- Maintenance: Smooth surfaces and washable metal grease filters
- Optional safety: Safera Stove Guard preinstalled on equipped models (requires approved power control unit); recommended water leakage monitor (SA1)
- Summer cooling: 10 hours summer cooling feature
